Product Grilles
Type Fixed blade
Fixing Floor mounted
Shape Square
Material Aluminium
Features Fixed
Suitability Heating air
Supply air

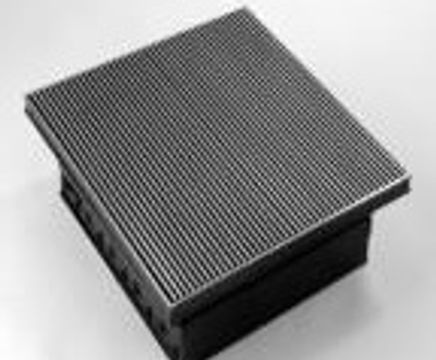

Heavy/extra heavy duty floor grilles, made of aluminium, with fixed horizontal blades

Type AFG heavy-duty floor grilles are ideal for areas with prolonged foot traffic and/or rolling loads (such as atria or data centres).

  • Exceeds the requirements of BS-EN 13264:2001 heavy and extra heavy structural classification
  • For installation in raised access floors
  • Nominal size 600 x 600mm
  • Volume flow rate range 0-530 l/s or 0-1908m3/h
  • Grille face made of aluminium with powder-coat finish
  • Front border, 6mm with 6mm wide blades
  • Suitable for floor tile depths between 25-50mm

Optional equipment and accessories

  • Attachments for volume flow rate balancing
  • 240V fan deck for low or zero pressure void applications


Heavy/extra heavy duty floor grilles, made of aluminium, with fixed horizontal blades

Type AFG heavy-duty floor grilles are ideal for areas with prolonged foot traffic and/or rolling loads (such as atria or data centres).

  • Exceeds the requirements of BS-EN 13264:2001 heavy and extra heavy structural classification
  • For installation in raised access floors
  • Nominal size 600 x 600mm
  • Volume flow rate range 0-530 l/s or 0-1908m3/h
  • Grille face made of aluminium with powder-coat finish
  • Front border, 6mm with 6mm wide blades
  • Suitable for floor tile depths between 25-50mm

Optional equipment and accessories

  • Attachments for volume flow rate balancing
  • 240V fan deck for low or zero pressure void applications
