Sector Retail
Project type New build
Services provided Design
Project management
Product / system manufacture
Product / system supply
Installation
Year completed 2017
Project location South East England



CAS designed and manufactured three prefabricated packaged plantrooms for the new Fenwick store in Bracknell.

Plantroom 1

Heating and hot water combined packaged plantroom containing:

  • 2 No. natural gas-fired boilers, each with an output of 479.6kW
  • 2 No. 300 litre natural gas hot water heaters, each complete with expansion relief valve, 25 litre expansion vessel and temperature pressure relief valve
  • one low temperature hot water pressurisation unit, complete with an 800 litre expansion vessel
  • 3 No. twin-head low temperature hot water circulating pumps
  • 2 No. single-head hot water service return pumps
  • controls, lighting / emergency lighting and small power

The finished plant room was 7.5 x 3.9 x 3.0m high

Plantroom 2

Chilled water prefabricated packaged plantroom containing:

  • one chilled water pressurisation unit complete with a 200 litre expansion vessel
  • 4 No. twin-head chilled water circulating pumps
  • A 10 litre dosing pot
  • controls, lighting / emergency lighting and small power

The finished plant room was 7.5 x 3.75 x 3.0m high

Plantroom 3

Cold water storage prefabricated packaged plantroom containing:

  • one 8650 litre single piece cold water storage tank
  • one three-headed cold water booster pump
  • one single-head wash down booster set complete with break tank
  • controls, lighting / emergency lighting and small power.

The finished plant room was 5.0 x 3.9 x 3.25m high

All the internal pipework was insulated with foil-faced mineral wool insulation and finished with Isogenopak clad and relevant labelling and identification.

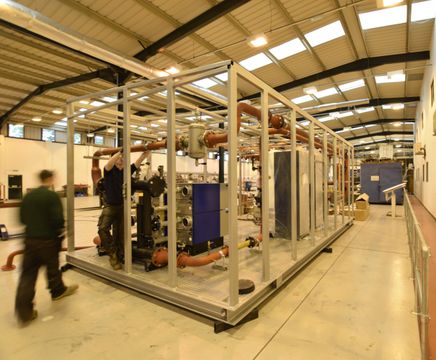

All three plantrooms were manufactured at the Constant Air Systems works in High Wycombe then craned onto lorries, transported to site and lifted into position.


CAS designed and manufactured three prefabricated packaged plantrooms for the new Fenwick store in Bracknell.

Plantroom 1

Heating and hot water combined packaged plantroom containing:

  • 2 No. natural gas-fired boilers, each with an output of 479.6kW
  • 2 No. 300 litre natural gas hot water heaters, each complete with expansion relief valve, 25 litre expansion vessel and temperature pressure relief valve
  • one low temperature hot water pressurisation unit, complete with an 800 litre expansion vessel
  • 3 No. twin-head low temperature hot water circulating pumps
  • 2 No. single-head hot water service return pumps
  • controls, lighting / emergency lighting and small power

The finished plant room was 7.5 x 3.9 x 3.0m high

Plantroom 2

Chilled water prefabricated packaged plantroom containing:

  • one chilled water pressurisation unit complete with a 200 litre expansion vessel
  • 4 No. twin-head chilled water circulating pumps
  • A 10 litre dosing pot
  • controls, lighting / emergency lighting and small power

The finished plant room was 7.5 x 3.75 x 3.0m high

Plantroom 3

Cold water storage prefabricated packaged plantroom containing:

  • one 8650 litre single piece cold water storage tank
  • one three-headed cold water booster pump
  • one single-head wash down booster set complete with break tank
  • controls, lighting / emergency lighting and small power.

The finished plant room was 5.0 x 3.9 x 3.25m high

All the internal pipework was insulated with foil-faced mineral wool insulation and finished with Isogenopak clad and relevant labelling and identification.

All three plantrooms were manufactured at the Constant Air Systems works in High Wycombe then craned onto lorries, transported to site and lifted into position.
