Frese




Media Cold water
Hot water
Suitability Air conditioning
Heating systems
Construction Brass
Max. pressure (bar) 20
Min. temperature (deg. C) 0
Max. temperature (deg. C) 120
Min. connection size (mm) 15
Max. connection size (mm) 15

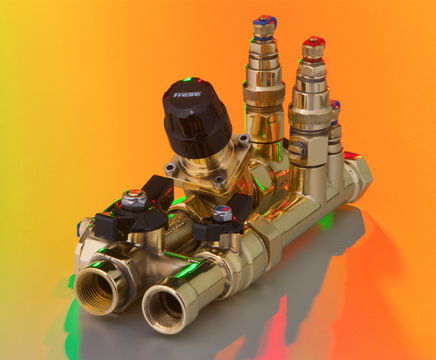

The MODULA Direct valve system from Frese combines the company's range of OPTIMA Compact pressure independent and temperature control valves with isolation, flushing, draining and measurement components within a prefabricated, tested and ready to install terminal bypass unit.

MODULA Direct is supplied with an integral venturi metering station for accurate flow verification.

Each unit is also supplied with isolation valves, combi-drains, P/T plugs, integral venturi metering station and the Frese OPTIMA Compact PICV for flow, temperature and pressure control.

MODULA Direct has been designed in accordance with the design guidelines from BSRIA for terminal unit installations.

Installation benefits

  • Can be mounted directly to a terminal unit
  • Compact design for installations with limited space
  • Minimised installation and commissioning costs
  • Allows easy flushing and coil isolation
  • Available in left hand and right hand versions
  • Fits directly over standard drip trays
  • Horizontal and vertical options available

Operation benefits

  • High comfort with minimised operation and maintenance costs
  • Efficient flow, temperature and pressure control
  • 4 modes of operation

Design benefits

  • Fitted with OPTIMA Compact PICV
  • Venturi metering station for flow measurement Installation benefits


The MODULA Direct valve system from Frese combines the company's range of OPTIMA Compact pressure independent and temperature control valves with isolation, flushing, draining and measurement components within a prefabricated, tested and ready to install terminal bypass unit.

MODULA Direct is supplied with an integral venturi metering station for accurate flow verification.

Each unit is also supplied with isolation valves, combi-drains, P/T plugs, integral venturi metering station and the Frese OPTIMA Compact PICV for flow, temperature and pressure control.

MODULA Direct has been designed in accordance with the design guidelines from BSRIA for terminal unit installations.

Installation benefits

  • Can be mounted directly to a terminal unit
  • Compact design for installations with limited space
  • Minimised installation and commissioning costs
  • Allows easy flushing and coil isolation
  • Available in left hand and right hand versions
  • Fits directly over standard drip trays
  • Horizontal and vertical options available

Operation benefits

  • High comfort with minimised operation and maintenance costs
  • Efficient flow, temperature and pressure control
  • 4 modes of operation

Design benefits

  • Fitted with OPTIMA Compact PICV
  • Venturi metering station for flow measurement Installation benefits
