Sector Education
Project type Refurbishment
Services provided Design
Product / system manufacture
Year completed 2016
Project location London
Client Global Learning Academy
Products used LTHW prefabricated packaged plantroom (for air handling units)

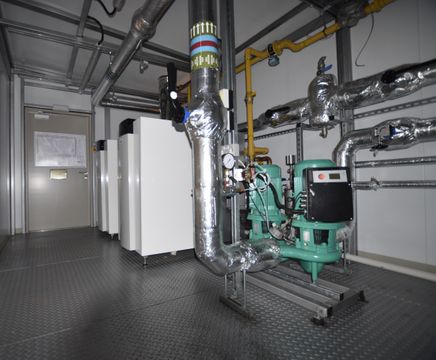

CAS designed and manufactured a Low Temperature Hot Water (LTHW) prefabricated packaged plantroom for the existing air handling units serving the Global Learning Academy at Tech Block C at Heathrow Airport.

The final solution featured the following services:

  • 2 No. gas-fired boilers each with an output of 380.2kW
  • a twin-head low temperature hot water circulating pump
  • a low temperature hot water twin pump pressurisation unit complete with a 300 litre expansion vessel
  • controls, lighting / emergency lighting and small power
  • internal drainage

The finished plant room was 5.23 x 3.28 x 3.0m high.


CAS designed and manufactured a Low Temperature Hot Water (LTHW) prefabricated packaged plantroom for the existing air handling units serving the Global Learning Academy at Tech Block C at Heathrow Airport.

The final solution featured the following services:

  • 2 No. gas-fired boilers each with an output of 380.2kW
  • a twin-head low temperature hot water circulating pump
  • a low temperature hot water twin pump pressurisation unit complete with a 300 litre expansion vessel
  • controls, lighting / emergency lighting and small power
  • internal drainage

The finished plant room was 5.23 x 3.28 x 3.0m high.
