Shape Rectangular
Suitability - floor finish Resilient floors
Screeded floors
Tiled floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Trapped / untrapped Trapped
Body material Stainless steel

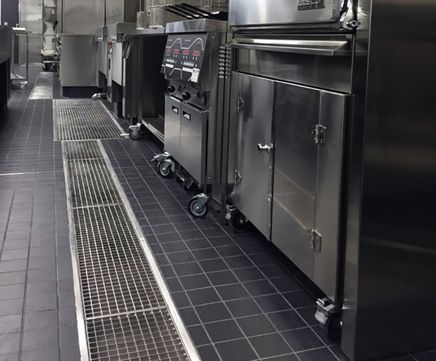

3010-500 stainless steel drainage channels are used in commercial kitchens where equipment such as bratt pans and tilting kettles are typically cleaned and then discharged directly into a channel drain.

The 3010-500 channel system is specifically designed to handle the large volumes of water used in commercial kitchen applications.

The channel system acts as a wash-down point, but also, when positioned in co-ordination with the tilting element of kitchen equipment, will collect waste water as well as any drips.

Features and benefits

  • a channel with a built-in fall with a gradient designed to be self-cleansing
  • anti-slip gratings
  • trapped gully assembly with waste basket to collect solids before they enter the drainage system
  • odour trap to prevent smells
  • all internal items are removable to allow for full bore access for rodding if required

Standard dimensions

  • 500mm wide with 450mm wide anti-slip gratings
  • 23 x 23mm open mesh
  • 30 x 3mm load bar
  • 110mm diameter spigot

Product options

  • grade 304 or 316 stainless steel
  • channel can be supplied in any length
  • outlet can be positioned anywhere along the length
  • various channel designs are available to suit a vinyl floor finish
  • side outlet gullies are available


3010-500 stainless steel drainage channels are used in commercial kitchens where equipment such as bratt pans and tilting kettles are typically cleaned and then discharged directly into a channel drain.

The 3010-500 channel system is specifically designed to handle the large volumes of water used in commercial kitchen applications.

The channel system acts as a wash-down point, but also, when positioned in co-ordination with the tilting element of kitchen equipment, will collect waste water as well as any drips.

Features and benefits

  • a channel with a built-in fall with a gradient designed to be self-cleansing
  • anti-slip gratings
  • trapped gully assembly with waste basket to collect solids before they enter the drainage system
  • odour trap to prevent smells
  • all internal items are removable to allow for full bore access for rodding if required

Standard dimensions

  • 500mm wide with 450mm wide anti-slip gratings
  • 23 x 23mm open mesh
  • 30 x 3mm load bar
  • 110mm diameter spigot

Product options

  • grade 304 or 316 stainless steel
  • channel can be supplied in any length
  • outlet can be positioned anywhere along the length
  • various channel designs are available to suit a vinyl floor finish
  • side outlet gullies are available
