Sector Retail
Project type New build
Services provided Design
Product / system manufacture
Product / system supply
Installation
Year completed 2015
Project location West Midlands
Client J Sainsbury plc

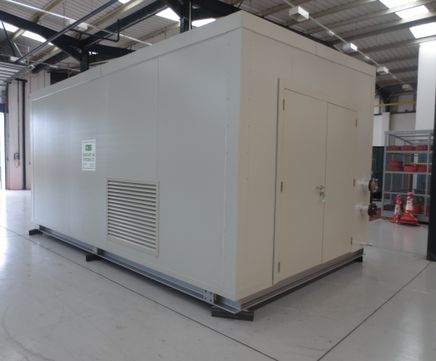

CAS designed and manufactured a prefabricated packaged plantroom for the new Sainsbury’s store in Hinckley.


The final solution featured the following services:

  • 2 No. gas-fired condensing boilers, each with an output of 210kW
  • A twin-head LTHW circulating pump.
  • 2 No. single-head boiler shunt pumps (one per each boiler)
  • A single-head HWS circulating pump.
  • A LTHW twin-pump pressurisation unit, complete with a 500-litre expansion vessels.
  • A 800-litre hot water heater, complete with an expansion vessel, expansion relief valve, pressure/temperature relief valve, pressure reducing valve, a 12kW and a 9kW immersion heater.
  • Controls, lighting/emergency lighting and small power.
  • Internal drainage.

The finished plant room was 5.8m long x 3.3m wide x 3.0m high.


CAS designed and manufactured a prefabricated packaged plantroom for the new Sainsbury’s store in Hinckley.


The final solution featured the following services:

  • 2 No. gas-fired condensing boilers, each with an output of 210kW
  • A twin-head LTHW circulating pump.
  • 2 No. single-head boiler shunt pumps (one per each boiler)
  • A single-head HWS circulating pump.
  • A LTHW twin-pump pressurisation unit, complete with a 500-litre expansion vessels.
  • A 800-litre hot water heater, complete with an expansion vessel, expansion relief valve, pressure/temperature relief valve, pressure reducing valve, a 12kW and a 9kW immersion heater.
  • Controls, lighting/emergency lighting and small power.
  • Internal drainage.

The finished plant room was 5.8m long x 3.3m wide x 3.0m high.
