Sector Commercial
Industrial
Functions Heating and cooling
Installation Duct mounted
Roof mounted
Features Acoustic insulating
Anti-vibration
Automatic defrosting
Double skinned
Ducted
Heat recovery
Variable speed
Weatherproof
Heating / cooling mechanism Cooling coils
Electric heaters
Gas-fired heaters
Heat exchangers
Airflow rate 0.2 m³/s to +50m³/s




Barkell's varied and diverse range of Air Handling Units (AHUs) are developed to meet specific project requirements.

They are delivered in various case sizes with airflow from 0.2-50m³/s. The larger the flow rate required, the larger the case size, although Barkell can engineer the system to deliver maximum system output from the smallest possible footprint whilst still providing adequate space for maintenance.

Barkell's 'less-is-more' means that the most compact AHU will always be recommended given the required design parameters. This makes them ideal for indoor installation (internal installation) and for outdoor applications (external installation) where space is tight and of paramount importance.

AHU unit configurations

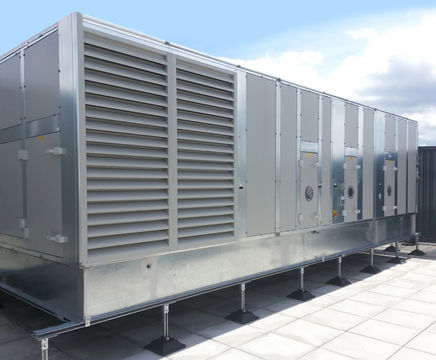

AHUs can be provided in indoor or outdoor, side-by-side or stacked, roof- or floor-mounted configurations. When specified at initial tender, Barkell can adapt and develop the AHU accordingly.

AHU components / options

  • Belt drive fan section with optional run and standby facility or motors external to the air stream
  • Direct drive fan section (plenum or centrifugal type, EC or high efficiency AC, PM motor option)
  • Maintenance access, air diffusion space, turning plenums
  • Attenuation
  • Particulate filtration (panel, bag, rigid)
  • Carbon filtration for odours and contaminants
  • High efficiency particulate air filter
  • Heating coil (water / steam)
  • Cooling coil (water / DX gas)
  • Electric heater
  • Indirect and direct gas heater
  • Steam humidifier (direct steam or self-generating – electrode boiler, resistive, gas)
  • Modulating or shut off damper
  • Mixing / exhaust box
  • Plate heat exchanger (with or without bypass for free cooling) can be aluminium, coated aluminium, plastic, etc.
  • Thermal wheel (sensible, hygroscopic, desiccant, enthalpy)
  • Heat pipe
  • Run around coils
  • Inlet / Outlet with ducted connection / louvre / hood / acoustic louvre
  • Adiabatic cooling or humidification
  • Integrated controls
  • N+1 redundancy
  • Acoustically and thermally insulated casing as standard, with further acoustic and thermal options
  • Fully welded galvanised steel box section frame work as standard, stainless steel and aluminium options
  • Interior lighting and viewing options
  • Raised or specially designed base frame options
  • Fixed (but accessible) or removable drain tray options in galvanised or stainless steel
  • Non standard colours available
  • Pitched roof as standard on externally mounted air handling units
  • Integrated air to air heat pump for cooling or reverse cycle operation
  • Fully packaged ‘plug and play’ option

AHUs with complete flexibility

A choice of configurations is offered to give real operating flexibility to suit different applications and operator preference throughout all of our air handling units.

The Enviropack™ R410A refrigeration package is available throughout all Barkell's air handling units, providing the option for cooling (10-235kW) and heating (9-218kW). Available in single and dual circuits, Enviropack™ delivers up to 4 stages of cooling or heating across multiple skid platforms. A single control panel manages both the refrigeration package and the AHU.


Barkell's varied and diverse range of Air Handling Units (AHUs) are developed to meet specific project requirements.

They are delivered in various case sizes with airflow from 0.2-50m³/s. The larger the flow rate required, the larger the case size, although Barkell can engineer the system to deliver maximum system output from the smallest possible footprint whilst still providing adequate space for maintenance.

Barkell's 'less-is-more' means that the most compact AHU will always be recommended given the required design parameters. This makes them ideal for indoor installation (internal installation) and for outdoor applications (external installation) where space is tight and of paramount importance.

AHU unit configurations

AHUs can be provided in indoor or outdoor, side-by-side or stacked, roof- or floor-mounted configurations. When specified at initial tender, Barkell can adapt and develop the AHU accordingly.

AHU components / options

  • Belt drive fan section with optional run and standby facility or motors external to the air stream
  • Direct drive fan section (plenum or centrifugal type, EC or high efficiency AC, PM motor option)
  • Maintenance access, air diffusion space, turning plenums
  • Attenuation
  • Particulate filtration (panel, bag, rigid)
  • Carbon filtration for odours and contaminants
  • High efficiency particulate air filter
  • Heating coil (water / steam)
  • Cooling coil (water / DX gas)
  • Electric heater
  • Indirect and direct gas heater
  • Steam humidifier (direct steam or self-generating – electrode boiler, resistive, gas)
  • Modulating or shut off damper
  • Mixing / exhaust box
  • Plate heat exchanger (with or without bypass for free cooling) can be aluminium, coated aluminium, plastic, etc.
  • Thermal wheel (sensible, hygroscopic, desiccant, enthalpy)
  • Heat pipe
  • Run around coils
  • Inlet / Outlet with ducted connection / louvre / hood / acoustic louvre
  • Adiabatic cooling or humidification
  • Integrated controls
  • N+1 redundancy
  • Acoustically and thermally insulated casing as standard, with further acoustic and thermal options
  • Fully welded galvanised steel box section frame work as standard, stainless steel and aluminium options
  • Interior lighting and viewing options
  • Raised or specially designed base frame options
  • Fixed (but accessible) or removable drain tray options in galvanised or stainless steel
  • Non standard colours available
  • Pitched roof as standard on externally mounted air handling units
  • Integrated air to air heat pump for cooling or reverse cycle operation
  • Fully packaged ‘plug and play’ option

AHUs with complete flexibility

A choice of configurations is offered to give real operating flexibility to suit different applications and operator preference throughout all of our air handling units.

The Enviropack™ R410A refrigeration package is available throughout all Barkell's air handling units, providing the option for cooling (10-235kW) and heating (9-218kW). Available in single and dual circuits, Enviropack™ delivers up to 4 stages of cooling or heating across multiple skid platforms. A single control panel manages both the refrigeration package and the AHU.
