Suitability - floor finish Resilient floors
Screeded floors
Tiled floors
Suitability - floor construction Solid floors
Suspended floors
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel




HygienicPro® drainage channels and drains have been specifically designed for hygiene-sensitive applications, such as in food and beverage, and pharmaceutical manufacturing.

The special geometry of the HygienicPro® drainage systems allows emptying of the drain using the minimum amount of water, while leaving no standing water or waste deposit.

The product range consists of modular components complemented by bespoke products, allowing hygienic drainage solutions to match any project and to accommodate changing needs, such as when drainage requirements or factory layout change.

Blücher is the first drainage system manufacturer to hold both EHEDG membership and HACCP certification.

Applications

HygienicPro® drainage systems are used in industrial applications where hygienic conditions are important, such as in food and pharmaceutical manufacturing.

They can be installed in concrete, tiled and resin flooring.

Key benefits

  • Based on EHEDG guidelines for hygienic construction
  • Made from stainless steel
  • Available as channels and slot drains in a range of sizes
  • Resistant to chemicals and high temperatures used in cleaning
  • High flow capacity channel leaves no standing water thus avoiding bacterial growth
  • Grating with no corners or cavities prevents waste deposit
  • Secure and durable bonding to floor minimises the risk of deformation to the frame and flooring cracks
  • Removable water traps for easy cleaning

Product features

  • Point drains or linear drains with centre or end outlet
  • Channel lengths from 1-10m

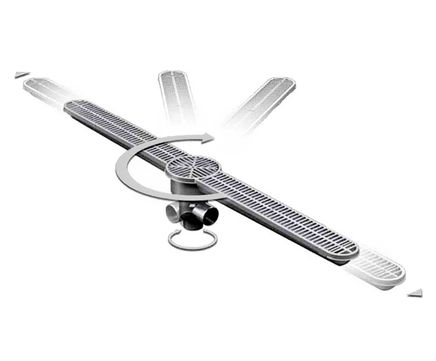

  • Channel lengths connected to outlet box at different angles
  • Outlet box and filter basket in three sizes
  • Vertical or horizontal outlet
  • ISO9001 and ISO14001 certified production

Technical specification

HygienicPro outlets

Material
Stainless steel: AISI 304 / EN1.4301 or AISI 316L / EN1.4404

Membrane type
No membrane

Outlet placement
End or centre

Outlet direction
Horizontal or vertical

Drain diameter
150mm

Outlet diameter
110mm

Channel length
1,000mm
1,500mm
2,000mm
3,000mm
4,000mm
5,000mm
6,000mm
7,000mm
8,000mm
9,000mm
10,000mm

HygienicPro industrial drains

Material
Stainless steel: AISI 304 / EN1.4301 or AISI 316L / EN1.4404

Type
Low, medium, and high

Size
Outer diameter: 300mm
Oulet diameter: 110mm

Accessories

All accessories are made from stainless steel. They include:

• Traps
P-trap or removable two-part trap

• Gratings
Rectangular and circles

• Filter baskets
Low, medium and high

• Filter for channel
It collects waste in channel sections away from outlet box to avoid large volumes of waste reducing the flow capacity towards the outlet box.

• Funnel for grating
It directs fluids into drain or channel from machinery while minimising splashing.

• Outlet filter
For fixing below the water trap to prevent emptying of filter baskets into the drain outlet with the risk of clogging in the pipework.

Spacing ring for filter basket
It provides space between outlet box bottom and filter basket bottom if a 'P' trap is used instead of a removable water trap.

Tile adapter
Fitted steel tiles for adaption to installation in tiled flooring.

Mounting bracket for channel

Adjustable leg for mounting bracket


HygienicPro® drainage channels and drains have been specifically designed for hygiene-sensitive applications, such as in food and beverage, and pharmaceutical manufacturing.

The special geometry of the HygienicPro® drainage systems allows emptying of the drain using the minimum amount of water, while leaving no standing water or waste deposit.

The product range consists of modular components complemented by bespoke products, allowing hygienic drainage solutions to match any project and to accommodate changing needs, such as when drainage requirements or factory layout change.

Blücher is the first drainage system manufacturer to hold both EHEDG membership and HACCP certification.

Applications

HygienicPro® drainage systems are used in industrial applications where hygienic conditions are important, such as in food and pharmaceutical manufacturing.

They can be installed in concrete, tiled and resin flooring.

Key benefits

  • Based on EHEDG guidelines for hygienic construction
  • Made from stainless steel
  • Available as channels and slot drains in a range of sizes
  • Resistant to chemicals and high temperatures used in cleaning
  • High flow capacity channel leaves no standing water thus avoiding bacterial growth
  • Grating with no corners or cavities prevents waste deposit
  • Secure and durable bonding to floor minimises the risk of deformation to the frame and flooring cracks
  • Removable water traps for easy cleaning

Product features

  • Point drains or linear drains with centre or end outlet
  • Channel lengths from 1-10m
  • Channel lengths connected to outlet box at different angles
  • Outlet box and filter basket in three sizes
  • Vertical or horizontal outlet
  • ISO9001 and ISO14001 certified production

Technical specification

HygienicPro outlets

Material
Stainless steel: AISI 304 / EN1.4301 or AISI 316L / EN1.4404

Membrane type
No membrane

Outlet placement
End or centre

Outlet direction
Horizontal or vertical

Drain diameter
150mm

Outlet diameter
110mm

Channel length
1,000mm
1,500mm
2,000mm
3,000mm
4,000mm
5,000mm
6,000mm
7,000mm
8,000mm
9,000mm
10,000mm

HygienicPro industrial drains

Material
Stainless steel: AISI 304 / EN1.4301 or AISI 316L / EN1.4404

Type
Low, medium, and high

Size
Outer diameter: 300mm
Oulet diameter: 110mm

Accessories

All accessories are made from stainless steel. They include:

• Traps
P-trap or removable two-part trap

• Gratings
Rectangular and circles

• Filter baskets
Low, medium and high

• Filter for channel
It collects waste in channel sections away from outlet box to avoid large volumes of waste reducing the flow capacity towards the outlet box.

• Funnel for grating
It directs fluids into drain or channel from machinery while minimising splashing.

• Outlet filter
For fixing below the water trap to prevent emptying of filter baskets into the drain outlet with the risk of clogging in the pipework.

Spacing ring for filter basket
It provides space between outlet box bottom and filter basket bottom if a 'P' trap is used instead of a removable water trap.

Tile adapter
Fitted steel tiles for adaption to installation in tiled flooring.

Mounting bracket for channel

Adjustable leg for mounting bracket
