Type Push buttons / pads
Suitability Toilets
Features Dual flush

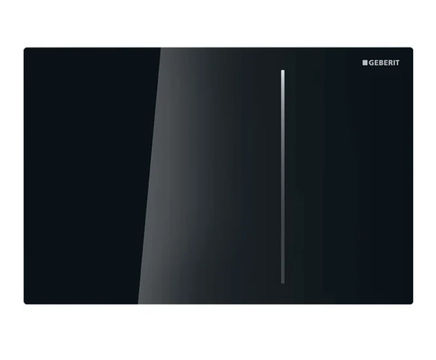

The Geberit Sigma70 dual flush flush plate sits just a few millimetres from the wall, conveying a sense of lightness. It is available in three colours of glass - black, white or umber.

Application purpose

  • For dual flush
  • For use with Geberit Sigma concealed cistern 12 cm
  • For soft touch flush actuation
  • Not suitable for use with Geberit Kappa concealed cistern 15 cm, Geberit Sigma concealed cistern 8 cm or Geberit Omega concealed cistern 12 cm

Characteristics

  • Front actuation only
  • Pneumatic flush actuation
  • Hydraulic power lift for minimal actuation forces
  • Low-noise lifting mechanism
  • Can be installed without tools
  • Flush plate hovers in front of the wall

Technical data

  • Flow pressure min. 1 bar
  • Actuation force < 20 N
  • Product material Glass

Scope of delivery

  • Hydraulic servo lifter
  • Water supply connection set
  • Cover
  • Mounting frame
  • 2 distance bolts
  • Assembly parts


The Geberit Sigma70 dual flush flush plate sits just a few millimetres from the wall, conveying a sense of lightness. It is available in three colours of glass - black, white or umber.

Application purpose

  • For dual flush
  • For use with Geberit Sigma concealed cistern 12 cm
  • For soft touch flush actuation
  • Not suitable for use with Geberit Kappa concealed cistern 15 cm, Geberit Sigma concealed cistern 8 cm or Geberit Omega concealed cistern 12 cm

Characteristics

  • Front actuation only
  • Pneumatic flush actuation
  • Hydraulic power lift for minimal actuation forces
  • Low-noise lifting mechanism
  • Can be installed without tools
  • Flush plate hovers in front of the wall

Technical data

  • Flow pressure min. 1 bar
  • Actuation force < 20 N
  • Product material Glass

Scope of delivery

  • Hydraulic servo lifter
  • Water supply connection set
  • Cover
  • Mounting frame
  • 2 distance bolts
  • Assembly parts


Interested in this product?
Call 01926 516800
OR



Downloads
  • Geberit Sigma70 glass data sheet
    Geberit Sigma70 glass data sheet
    1pp 180.53KB
    Download
  • Geberit Sigma70 Installation Manual
    Geberit Sigma70 Installation Manual
    4pp 431.4KB
    Download
  • Geberot Sigma70 Installation Manual 2
    Geberot Sigma70 Installation Manual 2
    8pp 1.25MB
    Download
  • Geberit Sigma70 Maintenance Manual
    Geberit Sigma70 Maintenance Manual
    32pp 5.21MB
    Download
