For the ventilation of Smoke
Suitability Flat roofs
Frame material Aluminium

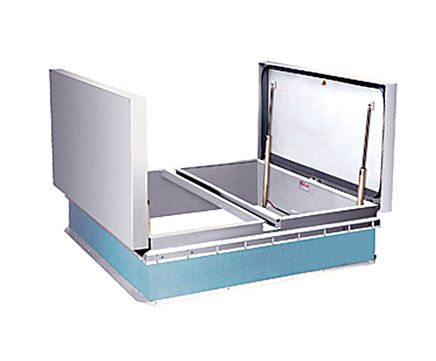

Bilco's UDF-50REM and D-50REM natural ventilators are opened to a position of 90 degrees within 60 seconds, allowing smoke and heat to escape from a building in the event of a fire.

They are manufactured to comply with the latest regulations including the Construction Products Regulation 305/2011. All standard vents are supplied CE marked and with a Declaration of Conformity and are manufactured to meet the demands of Building Regulations, Approved Document B, BS9999 and EN12101-2.

A newly designed closed-cell EPDM sponge gasket helps meet Building Regulations air leakage targets by providing a better seal of the cover to the curb, ensuring complete weather-tightness.

Features and benefits

  • Linear actuators open the covers to the fire open position
  • Curb mounted junction box with terminal block enclosed for power cable connection
  • Built-in wind deflector to protect open vent against wind loads
  • Entire vent shall be weathertight with fully welded corner joints on cover and curb
  • Fully insulated cover and curb for maximum energy efficiency
  • Curb features the Bil-Clip flashing system, an innovative method to quickly and easily secure single-ply roofing material to Bilco roof products

Standard sizes (size mm, weight, clear vent area)

  • UDF-50REM: 1500x1620, 215kg, 1.5m2
  • UDF-50REM CL: 1500 x620, 230kg, 1.5m2
  • D-50REM: special order


Bilco's UDF-50REM and D-50REM natural ventilators are opened to a position of 90 degrees within 60 seconds, allowing smoke and heat to escape from a building in the event of a fire.

They are manufactured to comply with the latest regulations including the Construction Products Regulation 305/2011. All standard vents are supplied CE marked and with a Declaration of Conformity and are manufactured to meet the demands of Building Regulations, Approved Document B, BS9999 and EN12101-2.

A newly designed closed-cell EPDM sponge gasket helps meet Building Regulations air leakage targets by providing a better seal of the cover to the curb, ensuring complete weather-tightness.

Features and benefits

  • Linear actuators open the covers to the fire open position
  • Curb mounted junction box with terminal block enclosed for power cable connection
  • Built-in wind deflector to protect open vent against wind loads
  • Entire vent shall be weathertight with fully welded corner joints on cover and curb
  • Fully insulated cover and curb for maximum energy efficiency
  • Curb features the Bil-Clip flashing system, an innovative method to quickly and easily secure single-ply roofing material to Bilco roof products

Standard sizes (size mm, weight, clear vent area)

  • UDF-50REM: 1500x1620, 215kg, 1.5m2
  • UDF-50REM CL: 1500 x620, 230kg, 1.5m2
  • D-50REM: special order
