Sector Commercial
Industrial
Functions Heating and cooling
Installation Roof mounted
Features Heat recovery
Heating / cooling mechanism Heat exchangers
Airflow rate 1,200 to 86,000 m3/h (0.3 to 24 m3/sec)
Unit dimensions (l x d x h) 306 to 2448 mm in height; 612 to 4896mm width

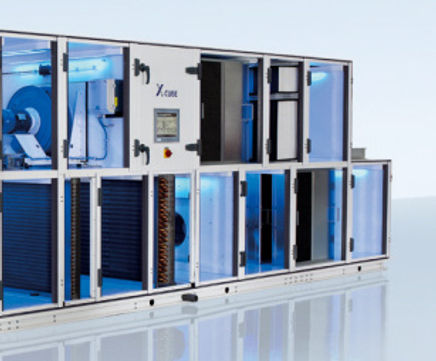

X-CUBE is an air handling unit that can be configured to a very wide range of options, and that can be used for all types of air handling, including the ventilation of rooms and entire buildings, for filtering, heating, and cooling the air, for heat recovery, as well as for humidification and dehumidification.

X-CUBE units are available as supply or extract air units, or as preassembled combination units with the casings arranged side by side or on top of each other.

With 2m/s air velocity, the units cover an air volume flow rate range of 1,200-86,000m3/h (0.3-24m3/sec).

Energy efficiency was the guiding concept in the development of the X-CUBE. Construction, insulation, low leakage, heat recovery, energy-efficient motors, and intelligent control technology have resulted in a double-digit savings potential when compared to conventional air handling units.

A special hygiene construction variant according to DIN 1946/4 is available for use in hospitals and laboratories. A weatherproof variant for outdoor is also available.


X-CUBE is an air handling unit that can be configured to a very wide range of options, and that can be used for all types of air handling, including the ventilation of rooms and entire buildings, for filtering, heating, and cooling the air, for heat recovery, as well as for humidification and dehumidification.

X-CUBE units are available as supply or extract air units, or as preassembled combination units with the casings arranged side by side or on top of each other.

With 2m/s air velocity, the units cover an air volume flow rate range of 1,200-86,000m3/h (0.3-24m3/sec).

Energy efficiency was the guiding concept in the development of the X-CUBE. Construction, insulation, low leakage, heat recovery, energy-efficient motors, and intelligent control technology have resulted in a double-digit savings potential when compared to conventional air handling units.

A special hygiene construction variant according to DIN 1946/4 is available for use in hospitals and laboratories. A weatherproof variant for outdoor is also available.
