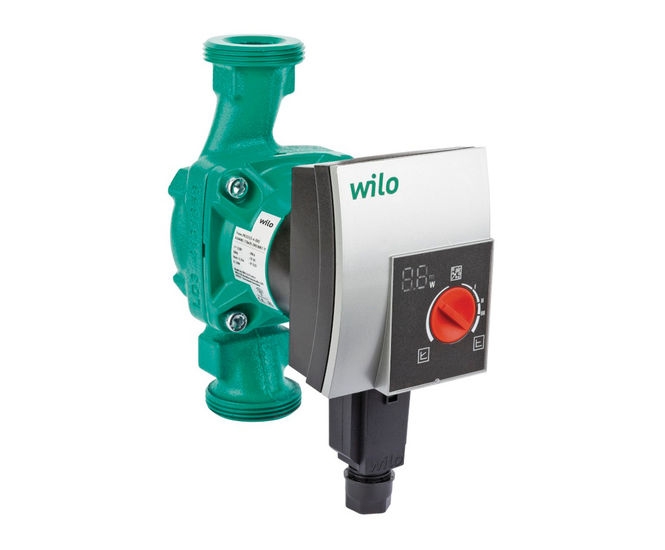

Product name Yonos PICO
Suitability Air conditioning
Heating systems
Housing Cast iron
Max. pressure 6 bar
Liquid temperature range (deg. C) -10°C to +95°C




Yonos PICO is a glandless circulation pump with a threaded connection, a blocking-current proof EC motor and integrated electronic power control.

It is suitable for all hot water heating systems, air-conditioning applications, industrial circulation systems.

Special features / product advantages

  • Very high degrees of efficiency due to ECM technology
  • High-efficiency pump especially for single and two-family houses, as well as for two to six-family houses
  • Only 4 watts minimum power consumption
  • Preselectable control modes for optimum load adjustment Δ p-c (differential pressure constant), Δ p-v (differential pressure variable)
  • Integrated motor protection
  • LED for setting the setpoint and displaying the current consumption in watts
  • Venting function for venting the rotor chamber
  • Quick electrical connection with Wilo-Connector
  • Flexible installation due to compact design
  • Very high starting torque for reliable starting


Yonos PICO is a glandless circulation pump with a threaded connection, a blocking-current proof EC motor and integrated electronic power control.

It is suitable for all hot water heating systems, air-conditioning applications, industrial circulation systems.

Special features / product advantages

  • Very high degrees of efficiency due to ECM technology
  • High-efficiency pump especially for single and two-family houses, as well as for two to six-family houses
  • Only 4 watts minimum power consumption
  • Preselectable control modes for optimum load adjustment Δ p-c (differential pressure constant), Δ p-v (differential pressure variable)
  • Integrated motor protection
  • LED for setting the setpoint and displaying the current consumption in watts
  • Venting function for venting the rotor chamber
  • Quick electrical connection with Wilo-Connector
  • Flexible installation due to compact design
  • Very high starting torque for reliable starting





Downloads
  • Yonos PICO, Stratos PICO, Stratos pumps
    Yonos PICO, Stratos PICO, Stratos pumps
    12pp 6.09MB
    Download


Video





Enquire
