VeroLine-IPH-O special in-line pump

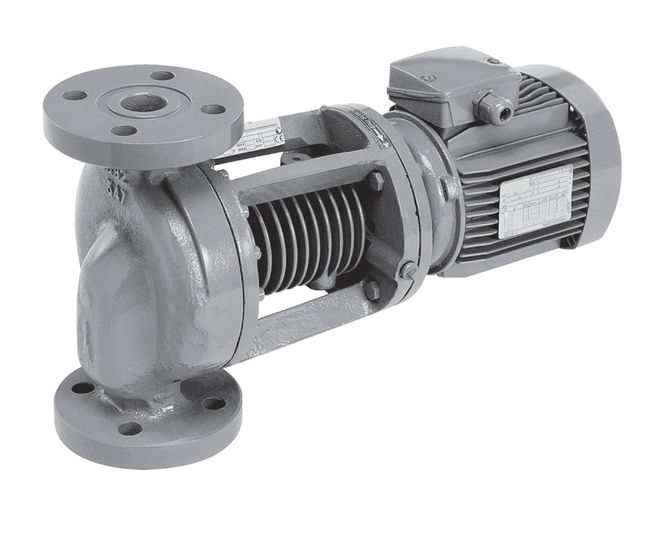

Wilo-VeroLine-IPH-O is a glanded pump of in-line design with a flange connection. It is a single-stage, low-pressure centrifugal pump. It is used for pumping heat transfer oil in closed industrial circulation systems. Glanded pump in in-line design with flange connection. from 0.75 kW, motors equipped as standard with IE2 technology with higher
Click for full image
VeroLine-IPH-O special in-line pump
Product name
VeroLine-IPH-O
Suitability
Heating systems
Max. pressure
9 bar
Liquid temperature range (deg. C)
-10 °C to +350 °C at max. 9 bar
Wilo-VeroLine-IPH-O is a glanded pump of in-line design with a flange connection. It is a single-stage, low-pressure centrifugal pump.
It is used for pumping heat transfer oil in closed industrial circulation systems.
Construction
Glanded pump in in-line design with flange connection.
Key features / advantages
From 0.75 kW, motors equipped as standard with IE2 technology with higher efficiency
Bidirectional, self-cooled mechanical seal
Great variety of applications by a large fluid temperature range without additional wearing parts
Technical data
Permissible temperature range -10 °C to +350 °C at max. 9 bar
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP 55
Nominal diameter DN 20 to DN 80
Materials
Pump housing: Cast steel 1.0625
Lantern: EN-GJS-400-15
Impeller: EN-GJL-250
Shaft: Stainless steel 1.4005
Mechanical seal: AQ1VGG; other mechanical seals on request
