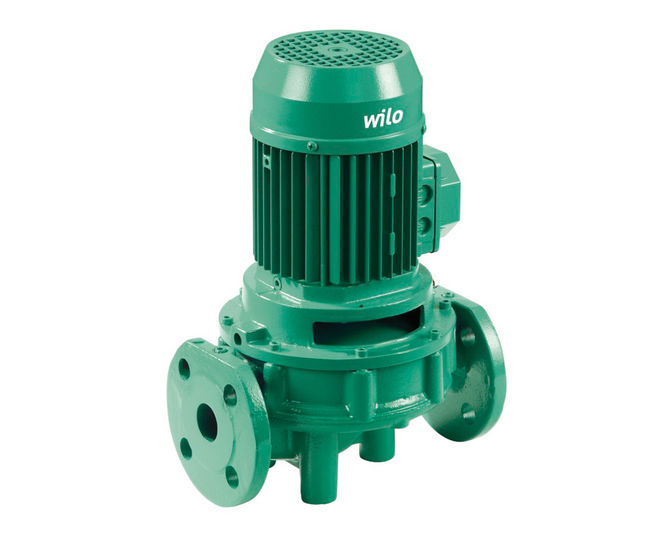

Product name VeroLine-IPL
Suitability Cooling systems
Heating systems
Housing Cast iron
Max. pressure 10 bar (special version: 16 bar)
Liquid temperature range (deg. C) -20 °C to +120 °C




Glanded pump in in-line design with threaded connection or flange connection

For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems

Key features / advantages

  • High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
  • High corrosion protection thanks to cataphoretic coating
  • Standard condensate drainage holes in the motor housings and lanterns
  • Series version: Motor with one-piece shaft
  • Version N: Standard motor B5 or V1 with stainless steel plug shaft
  • Bidirectional mechanical seal with forced flushing
  • Easy to install due to feet with threaded holes on pump housing

Technical data

  • Permissible temperature range -20 °C to +120 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter Rp 1 to DN 100
  • Max. operating pressure 10 bar (special version: 16 bar)

Materials

  • Pump housing and lantern: EN-GJL-250
  • Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
  • Shaft: 1.4021
  • Mechanical seal: AQEGG; other mechanical seals on request


Glanded pump in in-line design with threaded connection or flange connection

For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems

Key features / advantages

  • High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
  • High corrosion protection thanks to cataphoretic coating
  • Standard condensate drainage holes in the motor housings and lanterns
  • Series version: Motor with one-piece shaft
  • Version N: Standard motor B5 or V1 with stainless steel plug shaft
  • Bidirectional mechanical seal with forced flushing
  • Easy to install due to feet with threaded holes on pump housing

Technical data

  • Permissible temperature range -20 °C to +120 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter Rp 1 to DN 100
  • Max. operating pressure 10 bar (special version: 16 bar)

Materials

  • Pump housing and lantern: EN-GJL-250
  • Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
  • Shaft: 1.4021
  • Mechanical seal: AQEGG; other mechanical seals on request
