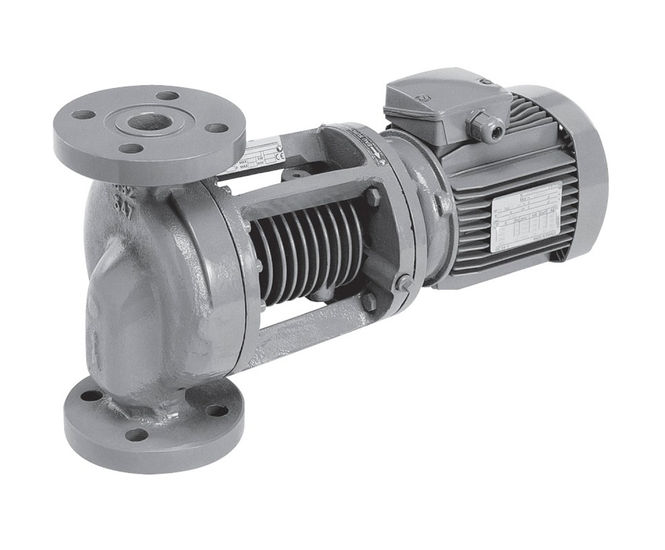

VeroLine-IPH-W special in-line pump
VeroLine-IPH-W is a special glanded pump if in-line design with a flange connection. It is used for pumping hot water without abrasive matter in closed industrial circulation systems, district heating, closed heating systems, etc: from 0.75 kW, motors equipped as standard with IE2 technology with higher efficiency; bidirectional, self-cooled
Click for full image
VeroLine-IPH-W special in-line pump
Product name
VeroLine-IPH-W
Suitability
Heating systems
Hot water systems
Housing
Cast iron
Max. pressure
23 bar
Liquid temperature range (deg. C)
-10 °C to +210 °C
VeroLine-IPH-W is a special glanded pump if in-line design with a flange connection.
It is used for pumping hot water without abrasive matter in closed industrial circulation systems, district heating, closed heating systems, etc.
Key features / advantages
From 0.75 kW, motors equipped as standard with IE2 technology with higher efficiency
Bidirectional, self-cooled mechanical seal
Great variety of applications by a large fluid temperature range without additional wearing parts
Construction
Glanded pump in in-line design with flange connection.
Technical data
Permissible temperature range -10 °C to +210 °C at max. 23 bar
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP 55
Nominal diameter DN 20 to DN 80
Materials
Pump housing: Cast steel 1.0625
Lantern: EN-GJS-400-15
Impeller: EN-GJL-250
Shaft: Stainless steel 1.4005
Mechanical seal: AQ1EGG; other mechanical seals on request
