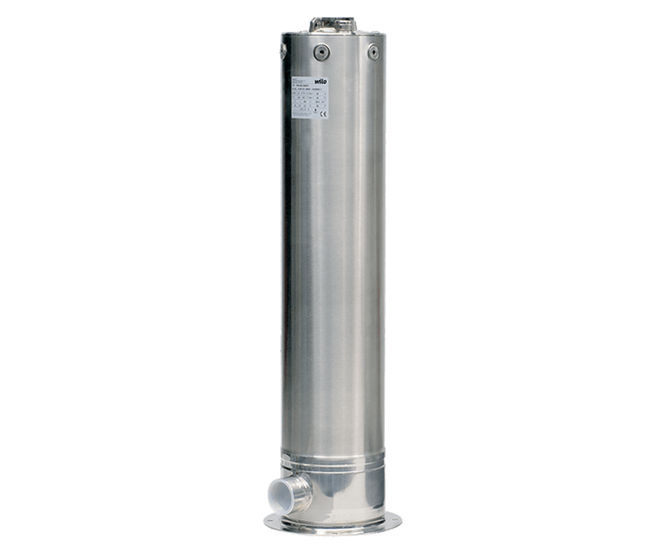

Product name Sub TWI 5/TWI 5-SE




Sub TWI 5/TWI 5-SE submersible multistage pump are 5" in bore and manufactured in stainless steel.

They are available as a single-phase AC current version and an FS version with integrated float switch.

Applications

  • Pumping from wells, rainwater storage tanks and vessels
  • Irrigation, sprinkling and pumping out
  • Water supply
  • Rainwater utilisation

Technical data

  • Mains connection 1~230 V, 50 Hz / 3~400 V, 50 Hz
  • Fluid temperature max. +5 °C to +35 °C
  • Max. operating pressure 10 bar
  • Protection class IP 68
  • Pressure-side connection Rp 1¼
  • Connection on suction side for SE version Rp 1¼


Sub TWI 5/TWI 5-SE submersible multistage pump are 5" in bore and manufactured in stainless steel.

They are available as a single-phase AC current version and an FS version with integrated float switch.

Applications

  • Pumping from wells, rainwater storage tanks and vessels
  • Irrigation, sprinkling and pumping out
  • Water supply
  • Rainwater utilisation

Technical data

  • Mains connection 1~230 V, 50 Hz / 3~400 V, 50 Hz
  • Fluid temperature max. +5 °C to +35 °C
  • Max. operating pressure 10 bar
  • Protection class IP 68
  • Pressure-side connection Rp 1¼
  • Connection on suction side for SE version Rp 1¼
