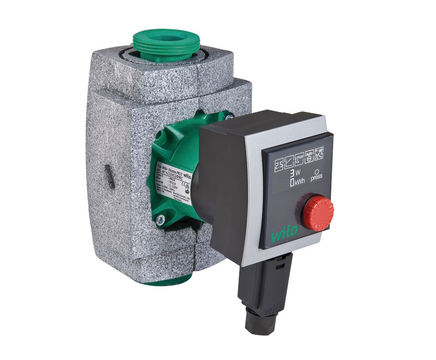

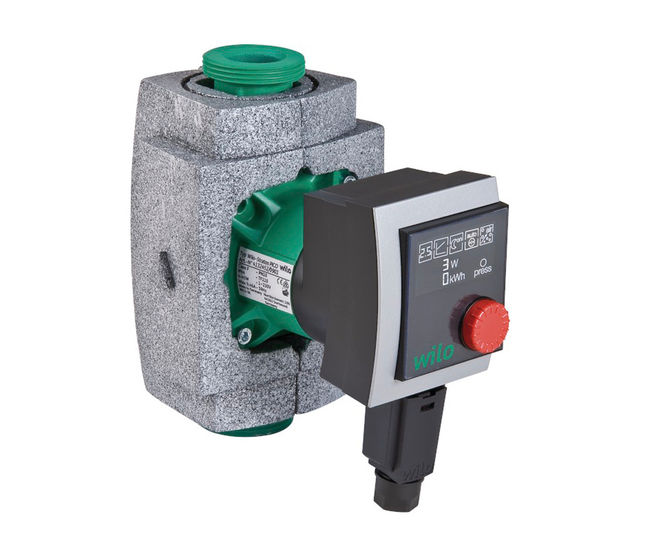

Stratos PICO is a glandless circulation pump with a threaded connection, a blocking-current proof EC motor and integrated electronic performance control.

It is used for all hot water heating systems, air conditioning applications, industrial circulation systems.

Key features / advantages

  • Very high degrees of efficiency due to ECM technology
  • High-efficiency pump especially for the single and two-family house and two to six-family house.
  • Up to 90% electricity savings compared to old uncontrolled heating pumps
  • Only 3 watts min. power consumption
  • Pre-selectable control modes for optimum load adaption Δp-c (constant differential pressure), Δp-v (variable differential pressure) can be combined with the Dynamic Adapt control function
  • Automatic setback operation
  • Integrated motor protection
  • LC display displaying the current consumption in watts and the cumulative kilowatt hours
  • Reset function for resetting the electricity meter or for resetting the settings to the factory settings
  • Bleeding routine for automatic venting of the rotor chamber
  • Quick electrical connection with Wilo-Connector
  • Very high starting torque for reliable starting
