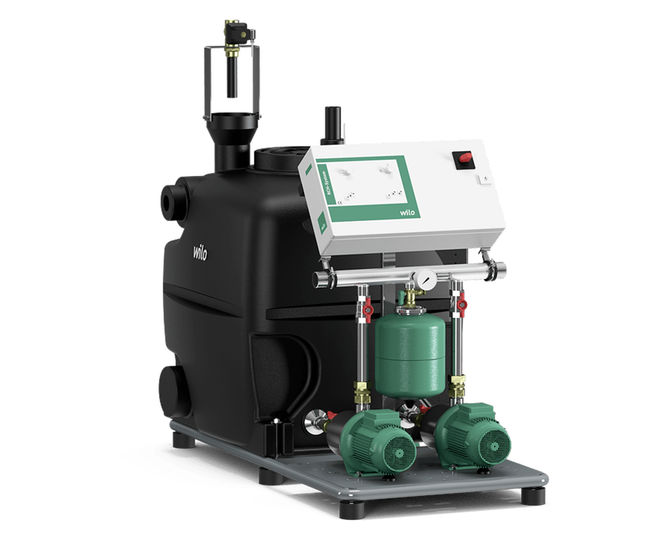

RainSystem AF 400 is an automatic rainwater utilisation system with run-down tank container and 2 non-self-priming pumps.

It is used for commercial and industrial rainwater utilisation applications to conserve potable water as a hybrid system in conjunction with rainwater storage tanks or vessels.

400L nominal capacity replenishment reservoir (hybrid tank).

Supplied as a compact, connection-ready module mounted on a vibration-insulated baseplate.

Key features / advantages

  • Low-noise due to standard multistage centrifugal pumps
  • All parts that come in contact with fluid are corrosion-free
  • Highest operational reliability thanks to fully-electronic Rain-Control Hybrid controller
  • High economic efficiency due to needs-based fresh water replenishment
  • High reliability thanks to flow- and noise-optimised overall concept
  • Automatic control of the feeding pump
  • System / level control in the low-volt range
  • Approved according to the quality specifications of the RAL quality standard GZ 994

Design

Automatic rainwater utilisation system with run-down tank and 2 non-self-priming pumps

Application

Commercial and industrial rainwater utilisation for conserving drinking water as a hybrid system in conjunction with rainwater storage tanks or vessels

Equipment / function

  • Connection-ready module with compact construction
  • Completely connected, electrically and hydraulically, and mounted on vibration-insulated baseplate, comprising:
  • 2 non-self-priming, corrosion-free, low-noise MultiPress series centrifugal pumps
  • R 1 1/2 joint tubing on the pressure side, including transmitter unit with 8-l diaphragm pressure vessel following the flow-through principle and shut-off device with draining, manometer 0–10 bar
  • Ball valve on suction and pressure sides and non-return valve
  • A large-volume hybrid tank with all connections, non-turbulent supply lines and overflow with siphon
  • RainControl Hybrid central switchgear with control electronics, 4–20 mA pressure transmitter and level control in the low-voltage range
  • Signals concerning operation and malfunctions
  • Steady system control by means of cyclical pump cycling and integrated test run on idle pumps
  • Automatic fault-actuated switchover and peak-load operation
  • Automatic water exchange in the replenishment reservoir
  • Permanent display of rainwater storage level, system pressure, operating status via LCD (optional)
  • Including DVGW-certified R 1 solenoid valve for the drinking water replenishment
