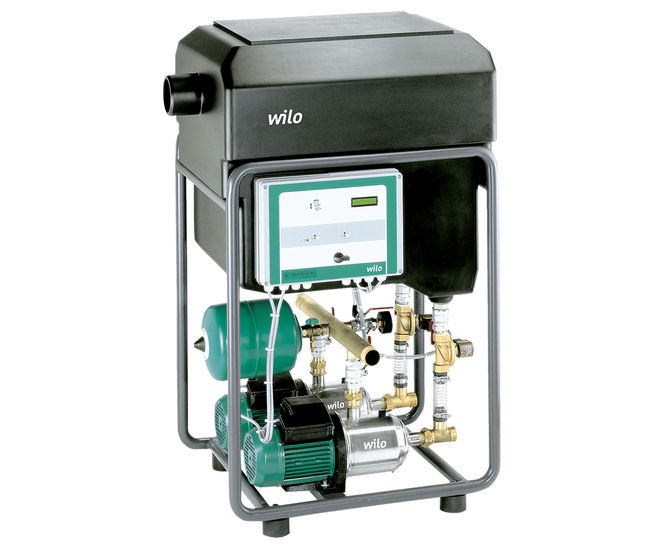

RainSystem AF 150 is an automatic rainwater utilisation system complete with a run-down tank and two self-priming pumps.

It is used in conjunction with cisterns or tanks for utilising rainwater and saving potable water in multi-family houses and small commercial applications.

It is supplied as a connection-ready module with compact construction, electrical and hydraulic connections already in place, mounted on vibration-insulated painted steel pipe frame.

The replenishment reservoir (hybrid tank) is 150L nominal capacity.

Key features / advantages

  • Low-noise due to multistage centrifugal pumps
  • IE2-IEC three-phase AC motor (≥ 0.75 kW)
  • All parts that come in contact with the fluid are corrosion-free
  • Maximum operational safety due to fully electronic RainControl Professional controller
  • High economic efficiency due to fresh water replenishment according to requirements
  • High reliability due to DVGW-certified, flow- and noise-optimised replenishment reservoir
  • Systems with three to six pressure boosting pumps on request or see chapter Wilo pressure boosting systems. Control of a single-phase cistern pump on request.

Design

Automatic rainwater utilisation system with run-down tank and 2 self-priming pumps

Application

Rainwater utilisation in multi-family houses and small trade businesses for saving drinking water in conjunction with cisterns or tanks

Equipment/function

Connection-ready module with compact construction, electrical and hydraulic connections already in place, mounted on vibration-insulated painted steel pipe frame, comprising:

2 self-priming, corrosion-free, low-noise MultiCargo MC series centrifugal pumps
Pressure-side R 1 1/2 joint tubing including transmitter unit with 8 l diaphragm pressure vessel with flow-through design and shut-off device with drain

  • Pressure gauge 0-10 bar
  • Ball valve on suction and pressure side
  • Large-volume fresh water replenishment reservoir (150 litre) with mechanical float valve
  • RainControl Professional central switchgear with control electronics including solenoid valves, pressure transmitter 4–20 mA and level sensor with 20 m cable for monitoring levels
  • Menu-prompted operation and LCD display of run/fault signals
  • Steady system control by means of cyclical pump cycling and integrated test run on idle pumps
  • Automatic fault-actuated switchover and peak-load operation
  • Automatic water exchange in the replenishment reservoir
  • Automatic prevention of lime deposits on the solenoid valve
  • Permanent display of rainwater storage tank level, system pressure and operating status via LCD
