Helix Excel is a non-self-priming, high-pressure multistage centrifugal pump.

Applications include water supply and pressure boosting, industrial circulation systems, process water, cooling water circulation systems, fire extinguishing systems, washing systems and irrigation.

This highly efficient fully stainless steel pump is vertical in design with an EC motor, an integrated high-efficiency drive and in-line connections.

Fluid temperature range

Helix EXCEL 2 – 16 (EPDM): -30 to 120 °C
Helix EXCEL 2 – 16 (FKM): -15 to 90 °C
Helix EXCEL 22 – 36 (EPDM): -20 to 120 °C
Helix EXCEL 22 – 36 for aggressive media (FKM): -15 to 90 °C
Helix EXCEL 22 – 36 for aggressive media (EPDM): -30 to 120 °C (on request)

Special features / product advantages

Highly efficient EC motor (efficiency higher than IE4 limit values in accordance with IEC TS 60034-31 Ed.1)
Efficiency-optimised, laser-welded 2D/3D high-efficiency hydraulics
High Efficiency Drive with wide control range
Optional interfaces for BUS communication via plug-in IF-modules
Control modes: Speed control, constant pressure and PID
The HELIX series is available with a user-friendly "X-Seal" cartridge mechanical seal (with standard gasket) which enables quick and easy maintenance
The spacer coupling allows the mechanical seal to be replaced without removing the motor (from 7.5 kW)
WRAS/KTW/ACS approval for all parts that come in contact with the fluid (EPDM version)

Design

Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Washing systems
Irrigation

Equipment/function

Impellers, guide vanes and stage housings made of corrosion-resistant material

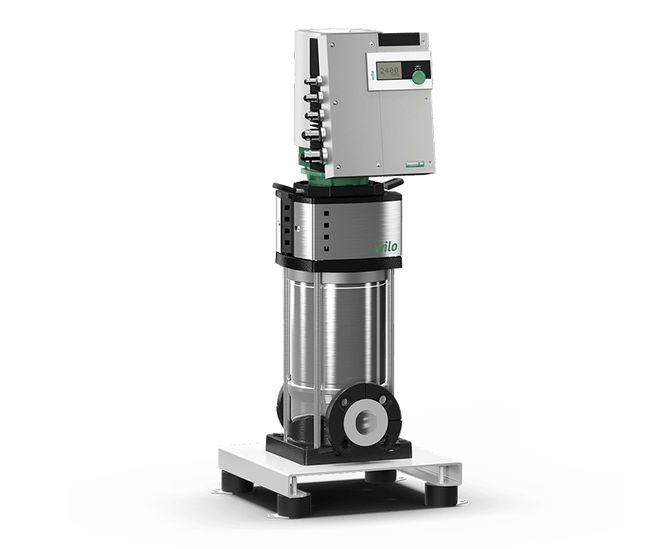

Helix Excel centrifugal pressure pump
