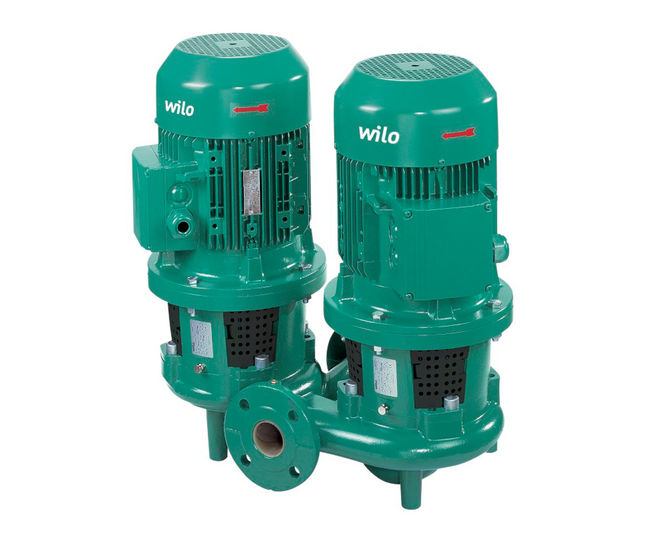

CronoTwin-DL is a glanded double pump of in-line design with a flange connection.

It is used for pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems.

Key features / advantages

  • High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
  • Reduced life cycle costs due to optimised efficiency
  • Standard condensate drainage holes in the motor housings
  • Can be used flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lantern design (patented)
  • High corrosion protection thanks to cataphoretic coating
  • Bidirectional mechanical seal with forced flushing
  • High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals
  • Reduction of space required and installation costs due to double pump design
  • Main/standby mode or peak-load operation (by means of external auxiliary device)
  • Peak-load operation (by means of external auxiliary device)

Technical data

  • Permissible temperature range -20 °C to +140 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter DN 32 to DN 200
  • Max. operating pressure 16 bar

Materials

  • Pump housing and lantern: Standard: EN-GJL-250
  • Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10
  • Shaft: 1.4122
  • Mechanical seal: AQEGG; other mechanical seals on request
