Product name BAC
Suitability Cooling systems
Heating systems
Max. pressure 6.5 bar
Liquid temperature range (deg. C) -15 °C to +60 °C

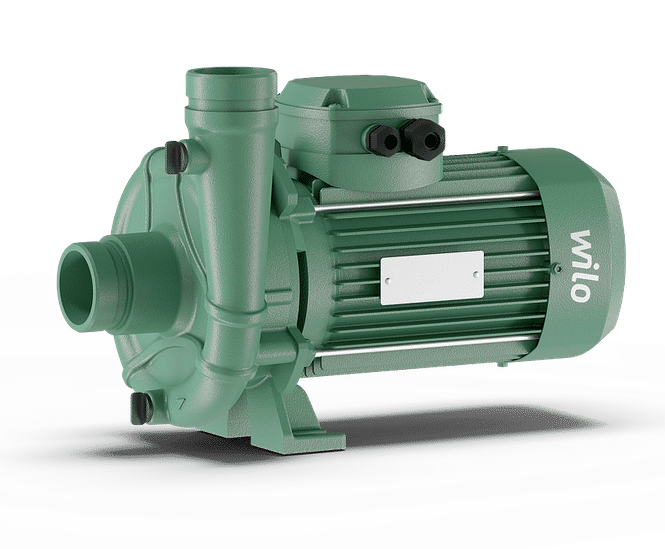

The BAC is a glanded pump in monobloc design with a plastic housing and either a screwed connection or Victaulic connection.

It is used for pumping cooling water, cold water, water-glycol mixtures and other fluids without abrasive substances.

This single-stage low-pressure centrifugal pump has an axial suction port and radially arranged pressure port.

Key benefits

  • Reduced life-cycle costs through optimised efficiency levels
  • Pump housing in plastic design
  • Version with Victaulic or threaded connection (BAC 70/135... with Victaulic connection only)

Technical data

  • Permissible temperature range -15 °C to +60 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 54
  • Screwed connection: G2/G 1½ (type S) or Victaulic connection 60.3/48.3 mm (type BAC 40…-R) or 76.1/76.1 mm (type BAC 70…-R)
  • Max. operating pressure 6.5 bar

Materials

  • Pump housing: PA 6.6 50% GF
  • Impeller: PA/PPO, fibreglass-reinforced
  • Shaft: X30Cr13
  • Mechanical seal: BQEGG

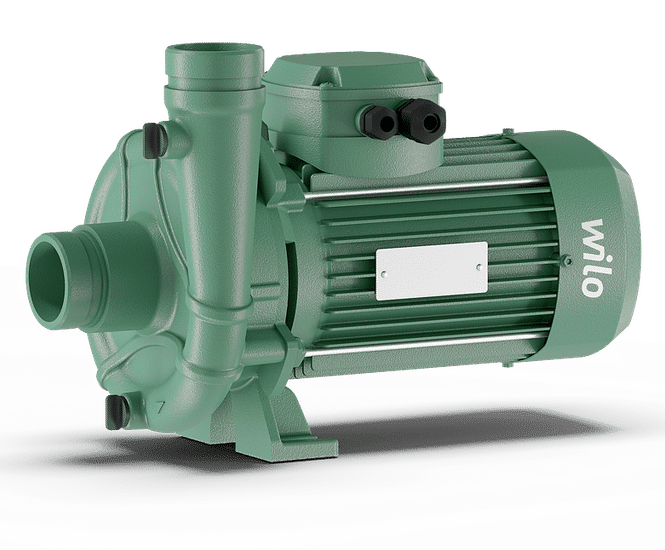

The BAC is a glanded pump in monobloc design with a plastic housing and either a screwed connection or Victaulic connection.

It is used for pumping cooling water, cold water, water-glycol mixtures and other fluids without abrasive substances.

This single-stage low-pressure centrifugal pump has an axial suction port and radially arranged pressure port.

Key benefits

  • Reduced life-cycle costs through optimised efficiency levels
  • Pump housing in plastic design
  • Version with Victaulic or threaded connection (BAC 70/135... with Victaulic connection only)

Technical data

  • Permissible temperature range -15 °C to +60 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 54
  • Screwed connection: G2/G 1½ (type S) or Victaulic connection 60.3/48.3 mm (type BAC 40…-R) or 76.1/76.1 mm (type BAC 70…-R)
  • Max. operating pressure 6.5 bar

Materials

  • Pump housing: PA 6.6 50% GF
  • Impeller: PA/PPO, fibreglass-reinforced
  • Shaft: X30Cr13
  • Mechanical seal: BQEGG
