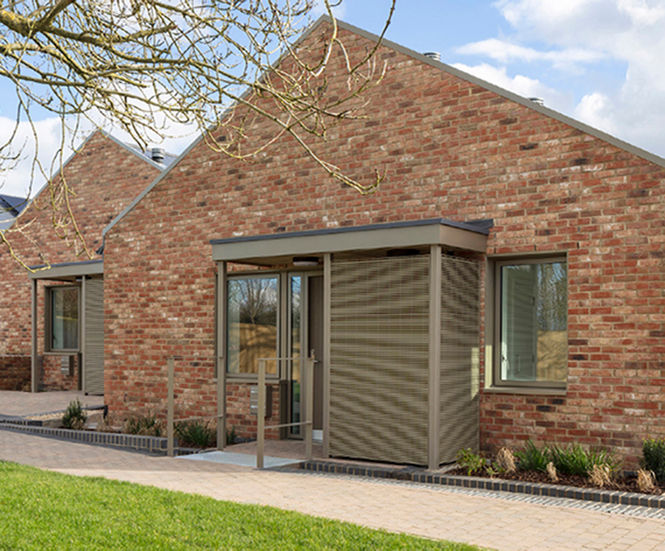

DeltaWing is a pressure-locked louvre with a sharp contemporary appearance.

The manufacturing process allows for a choice of spacings between the louvred blades, in increments of 11mm.

A panel can therefore provide the amount of screening/free area to meet the particular requirements of each project.

The 20x2mm vertical bars are generally spaced at 132mm but this is also variable.

Panels are made to custom sizes.

Typical specifications:

  • DeltaWing-100: 100% visual screening, 60% free area for ventilating mechanical plant and an effective rainscreen
  • DeltaWing-90: 90% visual screening and 63% free area for ventilating mechanical plant
  • DeltaWing-70: 70% visual screeninga and 65% free area for ventilating mechanical plant
  • DeltaWing-45: 45% visual screening with a relatively open construction for brise soleil


DeltaWing is a pressure-locked louvre with a sharp contemporary appearance.

The manufacturing process allows for a choice of spacings between the louvred blades, in increments of 11mm.

A panel can therefore provide the amount of screening/free area to meet the particular requirements of each project.

The 20x2mm vertical bars are generally spaced at 132mm but this is also variable.

Panels are made to custom sizes.

Typical specifications:

  • DeltaWing-100: 100% visual screening, 60% free area for ventilating mechanical plant and an effective rainscreen
  • DeltaWing-90: 90% visual screening and 63% free area for ventilating mechanical plant
  • DeltaWing-70: 70% visual screeninga and 65% free area for ventilating mechanical plant
  • DeltaWing-45: 45% visual screening with a relatively open construction for brise soleil
