Type Hands-free sensors
Suitability Toilets
Features Dual flush
Hygiene flush
System components Infrared sensors
Valves



The Easyflush Direct infrared sensor activated flushing system takes its water feed directly from the mains supply, eliminating the need for a cistern, which saves space and allows a second flush without waiting for the cistern to fill.

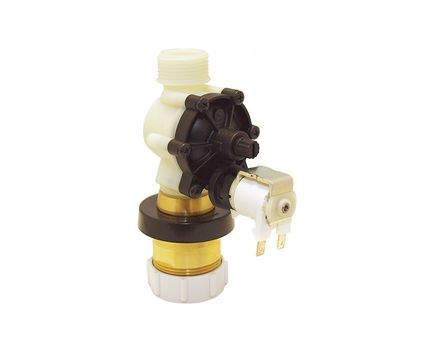

Available in two models, Easyflush Direct includes a valve, DC pipe interrupter and a sensor. When the sensor is activated, the valve opens for 2-3.5 seconds, supplying water to the flush before closing again.

Easyflush Direct Wave is operated by the user bringing their hand towards the infrared sensor. A part flush can be triggered by the user holding their hand in place near the sensor for about one second and a full flush is triggered by a slightly longer hand pass.

Easyflush Direct Walkaway is activated when the user stands up or leaves the cubicle, or by the user bringing their hand towards the sensor. A part flush is triggered by short user occupancy and a full flush by long user occupancy (over 45 seconds).

The flow duration for each outlet is programmed on installation.

Features and benefits

  • No inlet valves – reduced installation cost
  • No cistern required - saves space
  • No cistern refill - immediate re-flush for busy areas
  • Infrared sensor operated
  • Hygiene flush to maintain cleanliness
  • Range of flow rates, programmed on installation.
  • Compliant with Water Regulations

Specification wording

The mechanical contractor shall supply and install a no-touch dual flush, sensor operated flush.

The unit will be of a dual flush capability from one sensor and the flush volume will be adjustable both for part and full flush functions.

The sensor will be programmable for operating range, part flush and full flush operation (default is for part
flush to be active).

The unit should also incorporate a cleaner’s function to minimize water usage during routine cleaning operations.

The programming can be carried out manually by hand or by means of the Infrared Control Unit (not supplied).

The unit shall operate with the need for a WC Cistern.

The unit should have a periodic hygiene flush function to ensure facilities are kept in a clean and hygienic condition.

For multiple product installations the device is to have the option of being installed with a common power supply unit PSUC capable of powering several units from one 230V fused spur.

The WC flushing valves should be the Easyflush Direct Wave or Walkaway no touch mains flushing WC valve as manufactured by: Cistermiser Limited, Unit 1, Woodley Park Estate, 59 – 69 Reading Road, Woodley, Reading, RG5 3AN Tel: 0118 969 1611

Product codes

Easyflush Direct Wave: EFD
Easyflush Direct Walkaway: EFD/WALK
