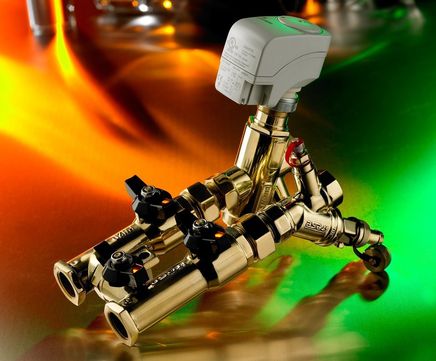

The MODULA valve system combines Frese dynamic flow, pressure and temperature control valves with isolation, flushing, draining and measurement components within a prefabricated tested and ready to install terminal connection assembly.

It can be integrated with:

  • OPTIMA Compact (pressure independent control valve)
  • ALPHA (dynamic flow limiting valve)
  • SIGMA Compact (externally adjustable dynamic flow limiting valve)
  • EVA (combined dynamic flow limiting and 2-port on/off valve)
  • PV Compact (adjustable differential pressure control valve)
  • STBV range (adjustable manual balancing valve)

The system includes isolation valves, strainer, drain/hose connections and P/T plug.

Applications

Typical applications include:

  • Fan coil units
  • Chilled beams (active and passive)
  • Radiant panels
  • Underfloor heating
  • Plate heat exchangers
  • Air handling units

Features

  • Available in DN15, DN20 and DN25
  • Available with 80mm, 130mm or 170mm supply/return centres
  • Integrated union joints for easy valve alignment
  • Two T-handle isolation valves for flow, return and bypass
  • Full flow valves on flow and return
  • Spindle extensions available
  • Combinations with strainer, drain/hose connection, P/T plug available
  • PT point on the flow for measuring the DP across the terminal unit

Key benefits

Installation benefits

  • Compact design for limited space availability
  • Minimised installation and commissioning costs
  • Allows easy flushing and coil isolation
  • Easy lagging of spindle extensions

Operation benefits

  • High comfort with minimized operation and maintenance costs
  • Efficient flow, temperature and pressure control
  • 5 modes of operation

Technical data

Material
Housing: DZR brass, CW602N
O-rings: EPDM

Pressure class:
PN20

Medium temperature range
0°C to 120°C


The MODULA valve system combines Frese dynamic flow, pressure and temperature control valves with isolation, flushing, draining and measurement components within a prefabricated tested and ready to install terminal connection assembly.

It can be integrated with:

  • OPTIMA Compact (pressure independent control valve)
  • ALPHA (dynamic flow limiting valve)
  • SIGMA Compact (externally adjustable dynamic flow limiting valve)
  • EVA (combined dynamic flow limiting and 2-port on/off valve)
  • PV Compact (adjustable differential pressure control valve)
  • STBV range (adjustable manual balancing valve)

The system includes isolation valves, strainer, drain/hose connections and P/T plug.

Applications

Typical applications include:

  • Fan coil units
  • Chilled beams (active and passive)
  • Radiant panels
  • Underfloor heating
  • Plate heat exchangers
  • Air handling units

Features

  • Available in DN15, DN20 and DN25
  • Available with 80mm, 130mm or 170mm supply/return centres
  • Integrated union joints for easy valve alignment
  • Two T-handle isolation valves for flow, return and bypass
  • Full flow valves on flow and return
  • Spindle extensions available
  • Combinations with strainer, drain/hose connection, P/T plug available
  • PT point on the flow for measuring the DP across the terminal unit

Key benefits

Installation benefits

  • Compact design for limited space availability
  • Minimised installation and commissioning costs
  • Allows easy flushing and coil isolation
  • Easy lagging of spindle extensions

Operation benefits

  • High comfort with minimized operation and maintenance costs
  • Efficient flow, temperature and pressure control
  • 5 modes of operation

Technical data

Material
Housing: DZR brass, CW602N
O-rings: EPDM

Pressure class:
PN20

Medium temperature range
0°C to 120°C


Interested in this product?
Call 01704 896012
OR



Downloads
  • Frese MODULA balancing and temperature control system technical data
    Frese MODULA balancing and temperature control system technical data
    9pp 1.57MB
    Download
  • Frese MODULA balancing and temperature control system mounting instructions
    Frese MODULA balancing and temperature control system mounting instructions
    2pp 747.83KB
    Download
