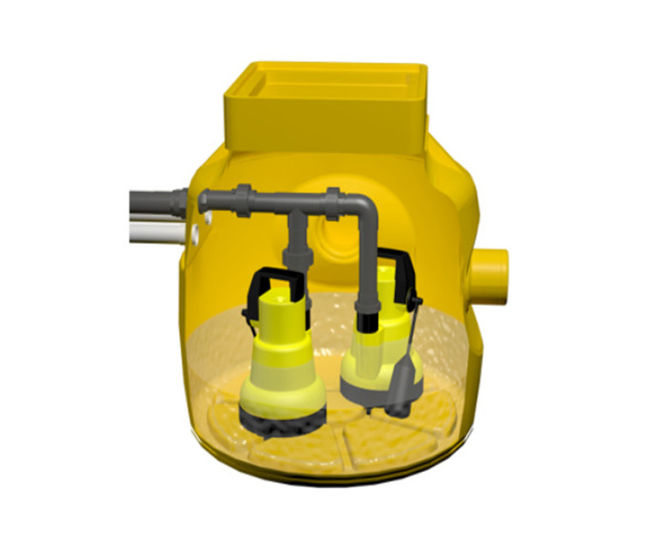

Delta Dual V6 is a high-capacity packaged pump station made from high-density polyethylene (HDPE) for managing groundwater and surface water in demanding environments. Designed for use with the Delta Type C System, it handles water from areas over 150m² or basements with head heights up to 10m, and includes two submersible pumps set for primary and secondary operation.

  • Packaged pump station for groundwater and surface water management in large or deep areas

  • Made from high-density polyethylene (HDPE) for strength against hydrostatic pressure

  • Supplied with two submersible pumps for staged operation and backup

  • Pre-assembled internal pipework and non-return valve for quick installation

  • Automatic pump control for reliable operation

Applications

  • Basement drainage

  • Surface water management

  • Flood resilience (PFR) projects

  • Residential and commercial buildings

  • Heritage property protection

  • Groundwater control in high water table areas

Dimensions

Volume below inlets: 87 litres

Clear opening: 330 x 330mm

Fixed inlets: 3 x 110mm

Discharge: 1¼” BSP

Cable duct: 2” / 50mm

Performance

Flow rate: up to 2 l/s at 10m head

Max. vertical lift: 12.5m

Max. flow rate: 3.9 l/s

Max. liquid temperature: <40°C

Materials

High-density polyethylene (HDPE) chamber

Installation

Pre-assembled internal pipework for quick and simple installation

Accreditations

BS 8102:2022 Type C Drained Protection
