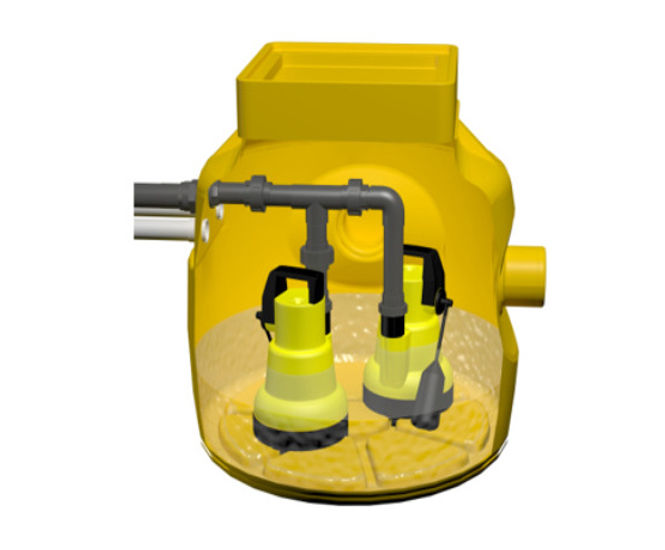

Delta Dual V3 packaged pumping station is made from high-density polyethylene and designed to collect groundwater and surface water in basement and lightwell applications. Supplied with two submersible pumps and pre-assembled internal pipework, it is suitable for use with cavity drained systems and withstands high water table conditions.

  • Packaged pump station for groundwater and surface water collection

  • Made from high-density polyethylene for strength against hydrostatic forces

  • Includes two submersible pumps and all internal pipework pre-assembled

  • Automatic pump control with 230 VAC power supply

  • Quick and simple installation process

Applications

  • Basement groundwater management

  • Surface water collection from lightwells

  • Flood resilience projects

  • Residential and commercial drainage

  • Heritage building protection

  • Grey water and storm water applications

Specifications

Volume below inlets: 87 litres

Clear opening: 330 x 330 mm

Fixed inlets: 3 x 110mm

Discharge: 1¼” BSP

Cable duct: 2” / 50mm

Weight: 5.2kg (per pump)

Performance

Flow rate: up to 2 l/s at 4m head

Maximum vertical lift: 6.8m

Maximum flow rate: 2.9 l/s

Maximum liquid temperature: <40°C

Motor rating: 180W

Rated current: 1.9A

Revolutions per minute: 2800

Free passage: 10mm

Cable length: 10m

Materials

High-density polyethylene (HDPE) chamber

Installation

All internal pipework pre-assembled for quick installation

Accreditations

BS 8102:2022 Type C Drained Protection

NBS Specification R18 (Clause 310)
