Commercial and domestic water harvesting systems
Marshalls Civils & Drainage have different types of precast rainwater harvesting systems for both domestic and commercial schemes. The systems work by collecting rainwater from roofs and occasionally hard standing areas, which are usually gravity fed though a cleaning filter into the Oasis chamber via calmed inlet. It is then pumped through a
Click for full image

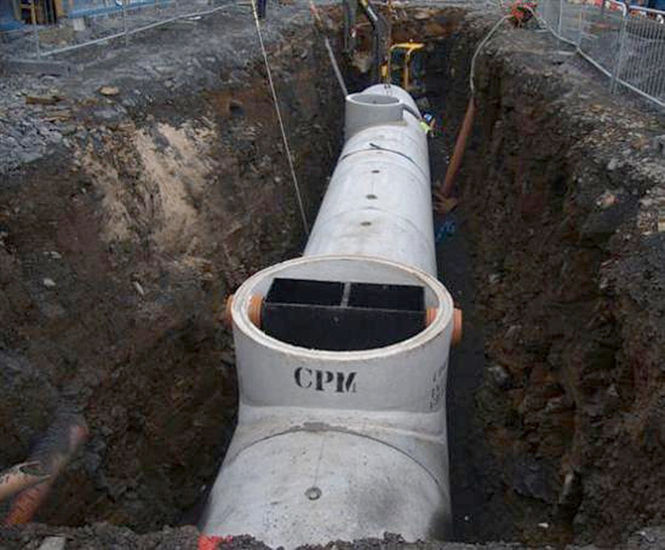

CPM manufacture commercial rainwater harvesting systems
Marshalls Civils & Drainage have different types of precast rainwater harvesting systems for both domestic and commercial schemes.
The systems work by collecting rainwater from roofs and occasionally hard standing areas, which are usually gravity fed though a cleaning filter into the Oasis chamber via calmed inlet.
It is then pumped through a floating filter directly on demand to the required supply areas i.e. non-potable applications such as toilet systems, washing machines, vehicle washing and garden taps.
Various backup systems can be planned into the system if there is insufficient rainwater stored in the holding chamber. This can be either via a header tank or directly into the holding tank, therefore always ensuring continuity of supply.
Oasis Rainwater Harvesting system is designed using high quality equipment to provide cleaned rainwater with minimum maintenance.
Water quality is maintained by the removal of organic matter and also by the action of the incoming water through the calmed inlet which introduces oxygen into the stored water.
Benefits of rainwater harvesting include:
Reduction in water and waste water costs.
Reduction in the use of sewage treatment systems.
Rainwater harvesting helps to ease the pressure on your mains water supply.
