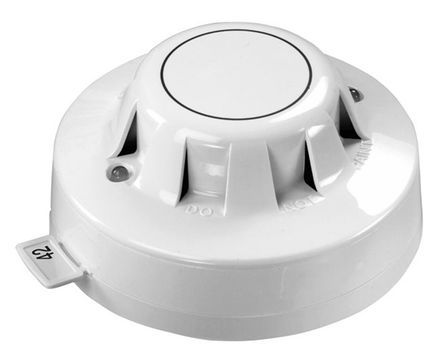

Discovery optical smoke detector

The Discovery optical smoke detector uses an IR LED that pulses light across a smoke chamber with a photodiode set at an obtuse angle. In clear air it receives no light, but when smoke enters the chamber, light from the LED is scattered onto the photodiode. A signal is then processed to provide an analogue value for transmission when the detector
