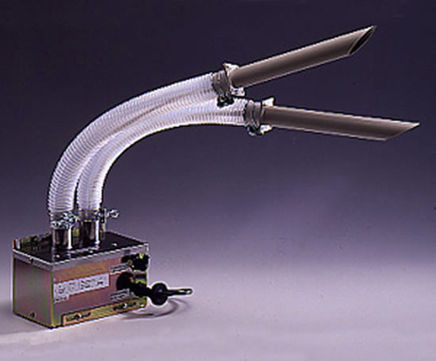

humiSonic for fan coils is an ultrasonic piezoelectric humidifier that has been designed specifically for installation in fan coils units.

A piezoelectric transducer immersed into water converts electricity into high-frequency mechanical vibrations which generates compression and depression waves where the water is forced to vaporise at low temperature and pressure thus producing an extremely fine droplet spray.

Ultrasonic units produce the smallest droplet size (3-5µm) for any atomising humidifier and consequently have excellent evaporation distances and efficiency. This allows very high precision from an adiabatic product.

Features

  • High precision adiabatic control +/- 1%rh (subject to accurate temperature control, system design and sensor accuracy).
  • Piezoelectric transducers.
  • Fill valve.
  • Fill water float switch.
  • Protection float switch in the event of an absence of water.
  • Thermal protection in the event of overheating.
  • 4m electric cable for connection to the electrical panel.
