Shape Circular
Suitability - floor finish Resilient floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Body material Stainless steel
Pipe diameter (mm) 110mm

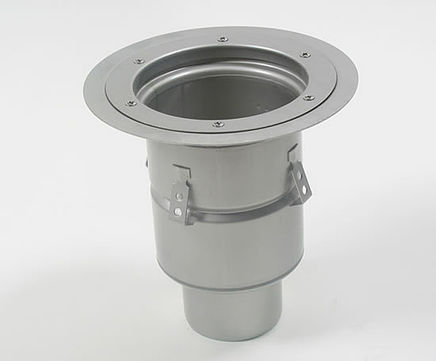

The Industrial 200 is a circular stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for flexible sheet floor finishes and is supplied without a membrane flange.

A vertical 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.


The Industrial 200 is a circular stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for flexible sheet floor finishes and is supplied without a membrane flange.

A vertical 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.
