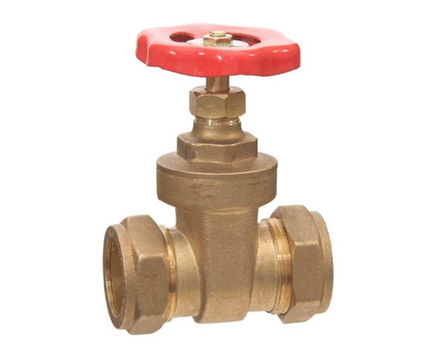

Brass compression gate valve

The brass compression gate valve is WRAS approved and pressure rated to PN16. It is available in a range of sizes: 15, 22, 28, 35, 42 and 54mm. Weights include: 0.2, 0.3, 0.5, 1, 1.3 and 2.2kg. The valve is made to BS 5154. It has a pressure/temperature rating of 5 bar at 120°C or 16 bar at 30°C. Compression ends are to BS EN 1254. Test pressure
