The Elson Coral Aquanox is an open vented thermal store that provides mains pressure domestic hot water. It does so by using a low pressure vented hot water storage systems.

The hot water storage cylinder in the Coral Aquanox is filled with water via the integral deed and expansion tank. The water is then heated directly by an immersion heater or indirectly by a heating coil within the cylinder that is connected to the central heating system.

Mains cold water is then heated as it passes through the purpose designed domestic hot water coil, providing instantaneous hot water at the taps. The temperature of the hot water is controlled by a WRAS approved TMV2 thermostatic mixing valve with a rapid fail-safe function to ensure safety and improving economy.

Features and benefits:

Designed to give maximum performance and efficiency and economy
Duplex stainless steel cylinder giving maximum strength and corrosion resistance
Revolutionary new coil design giving improved flow rates and maximising energy utilisation
Flow rates of up to 25 litres per minute
High levels of insulation for low standing heat losses and greater economy
Integral feed and expansion tanks as standard
Long-life Superloy 'L shaped' immersion heaters
Fully indemnified design service
Electronical protection rated at IPX2
Ozone depletion factor of zero
Global warming potential of 3.1
Products tested and compliant with EN 60335-1:2002 and EN 60335-2-21:2003
Fully compliant with UK Water Regulations and Building Regulations Part L
Five year warranty with on-site service support
Manufactured in the UK.

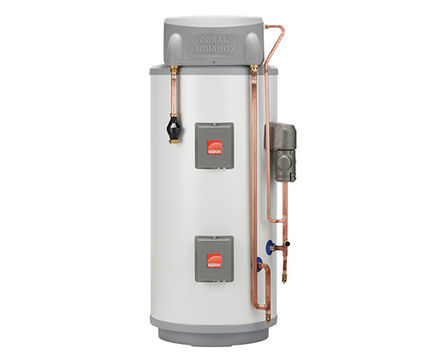

Elson Coral Aquanox thermal store
