Type Distribution boards
Suitability Low voltage
Sector Commercial
Maximum current (A) 1600

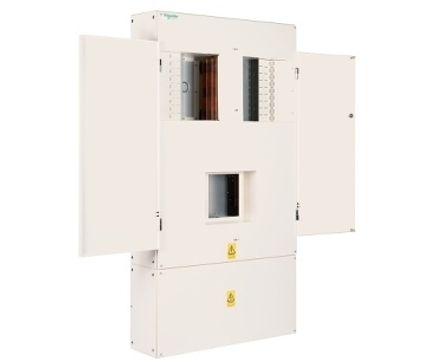

The Schneider Electric range of Powerpact 4 panel boards are for low voltage distribution. They were formerly supplied under the Merlin Gerin brand, is designed, manufactured and tested to BS EN 60439-1.

The structures can be wall or floor mounted and are made from rigid sheet steel finished in a cream colour epoxy powder (RAL 9001).

The Powerpact 4 panel boards contain a connection system that ensures that all busbar/breaker connections are tightened to the correct torque. The system comprises a tightening bolt head which shears off when the correct torque is reached. Facilities are provided to enable the breaker to be repositioned at a later time if so required. The breaker range comprises single pole, single pole with switched neutral, double pole, triple pole and three pole with switched neutral and four pole.

Incoming device ratings up to 1600A and outgoing ratings up to 630A can be connected.

The 400/630A panel board is supplied with 1 or 3 pole shroud for a 400/630A breaker. The line (supply) terminals on the incoming device must be suitably shrouded. For other breakers suitable terminal shields should be ordered separately:

250A 3-pole LV429323
250A 4-pole LV429324
400/630A 4-pole LV432565

(These terminal shields are supplied singly)


The Schneider Electric range of Powerpact 4 panel boards are for low voltage distribution. They were formerly supplied under the Merlin Gerin brand, is designed, manufactured and tested to BS EN 60439-1.

The structures can be wall or floor mounted and are made from rigid sheet steel finished in a cream colour epoxy powder (RAL 9001).

The Powerpact 4 panel boards contain a connection system that ensures that all busbar/breaker connections are tightened to the correct torque. The system comprises a tightening bolt head which shears off when the correct torque is reached. Facilities are provided to enable the breaker to be repositioned at a later time if so required. The breaker range comprises single pole, single pole with switched neutral, double pole, triple pole and three pole with switched neutral and four pole.

Incoming device ratings up to 1600A and outgoing ratings up to 630A can be connected.

The 400/630A panel board is supplied with 1 or 3 pole shroud for a 400/630A breaker. The line (supply) terminals on the incoming device must be suitably shrouded. For other breakers suitable terminal shields should be ordered separately:

250A 3-pole LV429323
250A 4-pole LV429324
400/630A 4-pole LV432565

(These terminal shields are supplied singly)
