We have extended our popular range of Extension Timers to include easy to install wall mountable units available in either 230 volt AC or 24 volt AC/DC varieties. Our extension timers have been designed to extend the normal running periods of a system and provide user absent overrides. We have also advanced our design to include a programmable delay period enabling plant equipment to be automatically activated at the desired time in the future without any user being present. This additional functionality delivers greater efficiencies when controlling systems with extension timers, as previously two separate units would have to be wired in sequence to incorporate a delay period, now with the launch of the E314 and our existing E313 only one unit is required.

Our range of programmable extension timers, incorporating the E313, E314 and E315, also provide our customers with greater functionality as the end user can programme a delay period anywhere between 1 hour and 99 hours (E313 and E314 only) and programme an extension period anywhere between 1 minute and 99 hours. All units are also provided with a tamperproof functionality which allows the installer or authorised user to set a maximum extension duration. Again this delivers greater efficiencies and cost savings by ensuring that extension periods are not inefficiently used.

Ideally suited to schools, sports halls, offices, meeting rooms, shops, community centres, churches, theatres, changing rooms, security lighting, floodlights and any infrequently used areas and zones our range of programmable extension timers are suitable for a number of applications.

The entire range is easy to install and simple to use by providing simple yet powerful control of devices when they are unmanned or require a temporary override to their regular control schedule.

E313 Provides an adjustable “Delay” period from 0 to 99 hours and an “Extension” period from 1 to 9 hours. The unit also provides the functionality to pre-set a maximum “Extension” period at hourly intervals. Each Timer can switch a load of up to 10A via a voltage-free relay output. Provided with an aluminium faceplate for mounting in a control panel.

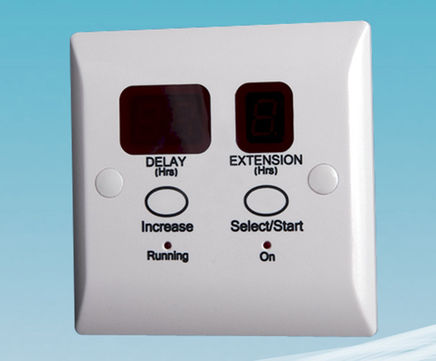

E314 Provides all the features and functionality of the E313, but is conveniently provided in a single gang faceplate for easy mounting on walls in offices, plant rooms, meeting rooms, shops etc. Available with either a 230V AC or 24V AC/DC power supply.

E315 This unit provides an adjustable Extension period of 1 to 99 hours, but unlike the E314 does not provide the functionality to programme a delay. The E315 is offered with 5 standard maximum extension periods 9, 12, 24, 48 and 99 hours. Available with either a 230V AC or 24V AC/DC power supply.

The above overview of each extension timer within the range is offered with specific time ranges and periods. However, we offer a free customisation service and can accommodate any time periods you may require from 1 minute to 99 hours. If you would like to take advantage of this free service please contact us directly on 0333 666 1176 to discuss your specific requirements.

We design and manufacture our range of energy saving controls at our facility in the UK and provide all products with a free 5 year guarantee.
