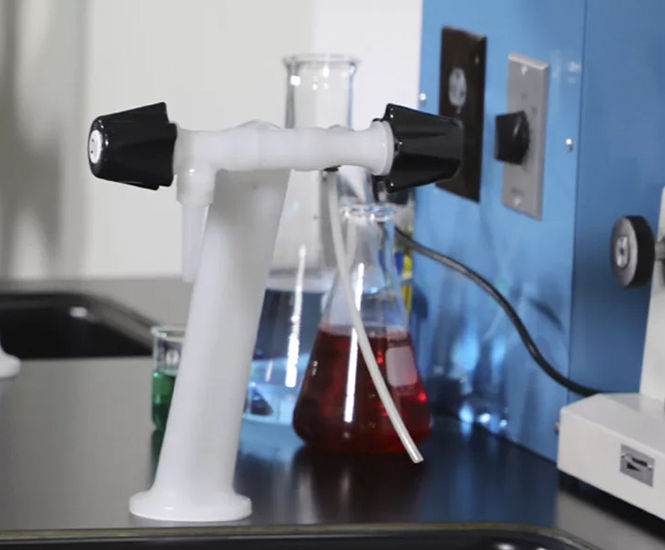

AquaTap™ Recirculating Faucet is a laboratory tap system designed for continuous deionised (DI) water flow, using an Inline Flow Diverter (IFD) to eliminate dead-legs and maintain water purity. Made from high purity PVDF, it prevents stagnant water and organic growth, with no wetted metal parts and low installation requirements.

  • Laboratory tap system for continuous DI water recirculation
  • Eliminates dead-legs to inhibit bacteria and biofilm growth
  • Made from high purity PVDF with PFA tubing; no wetted metal
  • Low installation and maintenance needs; no rigid pipe required
  • Precision metering with PVDF needle valve and removable outlet
  • Maintains flow up to 50 feet from IFD with minimal pressure drop
  • Meets FDA, USDA, and USP standards

Applications

  • Laboratory DI water distribution
  • Life science research facilities
  • Pharmaceutical labs
  • Cleanroom water systems
  • Point-of-use pure water outlets

Dimensions

Mounting hole diameter 2"–2½"

Nozzle connection ¼" NPT threads

Materials

Body PVDF

Wetted parts PVDF and PFA tubing

Options and variations

IFD in PROGEF Standard PP, PROGEF Plus, PROGEF Natural PP, SYGEF Standard PVDF

IFD with weld or sanitary clamp connections

SYGEF PVDF isolation ball valves (sold separately)

Performance

Maximum pressure 100 PSI

Temperature range -4°F to 284°F

IFD recirculation rate up to 2.25 GPM

IFD pressure drop less than 1 PSI

Valve Cv value 0.428

Continuous flow within 50 feet of IFD

99.8% fewer colony forming units than typical lab faucets

Installation

Smooth bore tubing for flexible, simplified piping

No need for rigid pipe to points of use

Product accreditations

Meets or exceeds FDA, USDA, and USP standards
