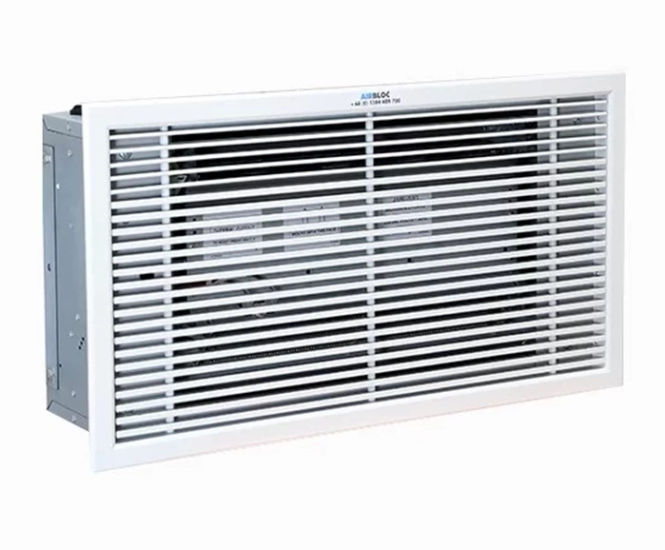

ACR Mini Series recessed electric air curtains are designed for discreet installation in suspended ceilings or bulkheads above small openings in commercial spaces. Suitable for openings up to 1m, these units deliver a down-flow of heated or ambient air to help maintain comfortable indoor conditions and reduce energy costs. Available in 3kW, 4.5kW, and 6kW outputs.

  • Recessed air curtain for small commercial openings up to 1m wide

  • Shallowest air curtain on the market, maximising internal space

  • Electric models with 3kW, 4.5kW, and 6kW outputs

  • Designed for installation in suspended ceilings or bulkheads

  • Helps reduce heating costs in areas with frequently open doors or windows

  • Improves comfort for staff and visitors by controlling air flow

  • Requires 1Z-RX controller for operation

Applications

  • Retail premises

  • Industrial and warehousing

  • Offices

  • Petrol filling stations

  • Drive-through restaurants

  • Fast food kiosks

Dimensions Model ACRMINI3 ACRMINI4.5 ACRMINI6 618 618 930 B Overall Width mm 340 340 340 C Unit Depth mm 140 140 140 D Fixing Bracket Length mm 605 605 920 E Fixing Bracket Width mm 150 150 150

Model

ACRMINI3

ACRMINI4.5

ACRMINI6

A Overall Length mm

618

618

930

B Overall Width mm

340

340

340

C Unit Depth mm

140

140

140

D Fixing Bracket Length mm

605

605

920

E Fixing Bracket Width mm

150

150

150

Options and variations

Available in 3kW, 4.5kW, and 6kW electric models

Installation

Designed for recessed installation in suspended ceilings or bulkheads
