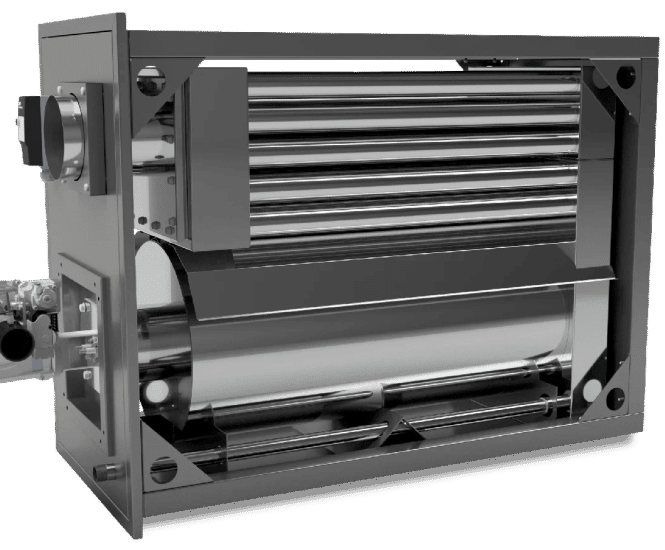

RHC+ Gas Fired Heat Module is a modular heating unit made for integration into ductwork and air handling systems, with heat outputs from 10 to 1000 kW. Designed for both indoor and outdoor use, it is suitable for replacing LPHW or electric coils with gas, and can be configured vertically, horizontally, or stacked to meet various industrial and commercial needs.

  • Modular gas-fired heating unit for ductwork and air handling systems

  • Net efficiencies up to 109% with ultra low NOx emissions

  • Heat outputs from 10 to 1000 kW, with high turndown ratios up to 50:1

  • Factory-assembled, compact design for easy installation and retrofitting

  • Supports process drying up to 250°C

  • Compatible with natural gas, LPG, kerosene, and HVO oil

  • Replaces older RHC4000 & 8000 units and other heat modules

  • Made in Britain

Applications

  • Offices

  • Industrial and warehousing

  • Agriculture and horticulture

  • Education

  • Drying and curing processes

Performance

Net efficiencies up to 109%
Heat outputs from 10 to 1000 kW
Process drying up to 250°C
High turndown ratio up to 50:1

Options and variations

Vertical and horizontal modules, single or stacked
30 to 1000 kW range
High temperature heat modules available

Installation

Factory assembled on a frame for mounting on coil slides
Fully wired with burner controls on a single side
Suitable for internal and external installation

Manufacture

Made in Britain
