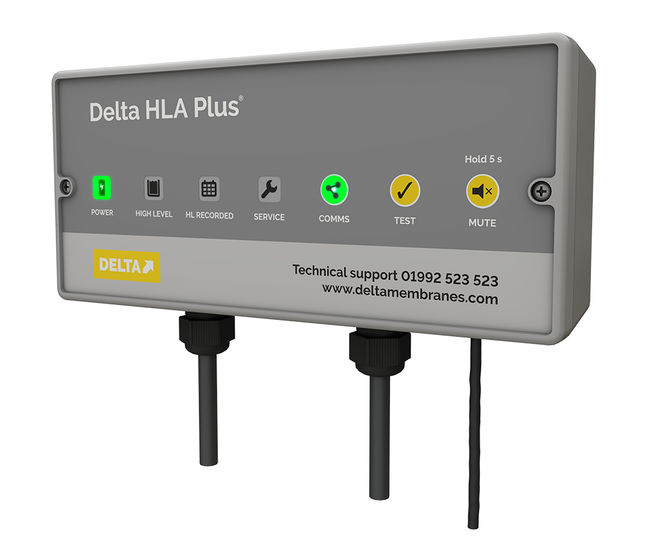

The Delta HLA Plus Intelligent highly advanced high water level alarm monitoring system is supplied with a Delta Level Float, that transforms the Delta HLA Plus ('smart' high water level alarm) into an 'intelligent' high water level alarm. It not only detects when a high water level occurs in a sump pump chamber, it also monitors sump pump activation(s), and changes in sump pump activation(s) (both frequency and duration).

For full features of the Delta HLA Plus Intelligent Pump Station Monitoring Device, all devices are required to be registered for free on the Delta Pumps App.

Delta HLA Plus Intelligent has both proactive and preventive functions. Real-time analysis of a pumping station enabling service, maintenance or repair requirements to be detected and implemented at the earliest stage.

Delta HLA Plus Intelligent is compatible with all ground and surface water Delta 800 Series packaged pump stations.

Features

  • Real-time streamline log analysis of basement drainage system(s)

  • Communicate faster during emergencies and other critical events

  • Enhanced customer care

  • A fully downloadable CSV history

  • Delta Pumps App identifies multiple pump stations on one site

  • Reduces risk of critical events

  • Proactive and preventive functions

  • Instant real-time monitoring to spot service failures before they make any impact

  • Records frequency of sump pump activation(s)

  • Records duration of sump pump activation(s)

  • Records fixed depth of water being evacuated from sump pump chamber

  • Records fixed volume of water being evacuated from sump pump chamber – based on pump chamber diameter

  • Records and monitors pump activities within pump stations

  • Sends notification messages to users in real time:
    – if there is mains power outage,
    – when a high-water situation has been recorded
    – when a high-water level situation occurs
    – when a service or routine maintenance is due
    – when changes in pump activity occur (frequency and duration)

  • Visual and audible displays on the HLA Plus Device

Specifications

  • Product code: DMS 539

  • Colour: grey

  • Included:
    - Delta HLA Plus control unit
    - Delta level float with 10m cable
    - Counterweight
    - Cable tie
    - Water level float bracket
    - Stainless steel hose clamp
    - 16mm IP68 cable gland X3
    - 20mm cable gland

  • Power supply: 230 V 50 Hz

  • Rated power: < 10 mA

  • Internal battery: 3.6 V, 7 Ah

  • Sound alarm level: 80 dB

  • Power cable length: 1m

  • Weight: 640g

  • Enclosure material: ABS

  • Protection rating: IP54

The Delta HLA Plus features three volt-free (dry) contacts for connection building management systems. They can be configured to Normally Open (NO) or Normally Closed (NC) depending on requirements.

  • High level volt-free contact

  • Power failure volt-free contact

  • Service due volt-free contact

Accreditation

  • NBS Specification R18 (Clause 310) Pumping Stations and Pressure Pipelines

  • BS 8102:2022 Type C Drained Protection

  • The Low Voltage Directive, EN61010:2010

  • The EMC Directive EN55014:2006, A1 and EN55014-2:2015
