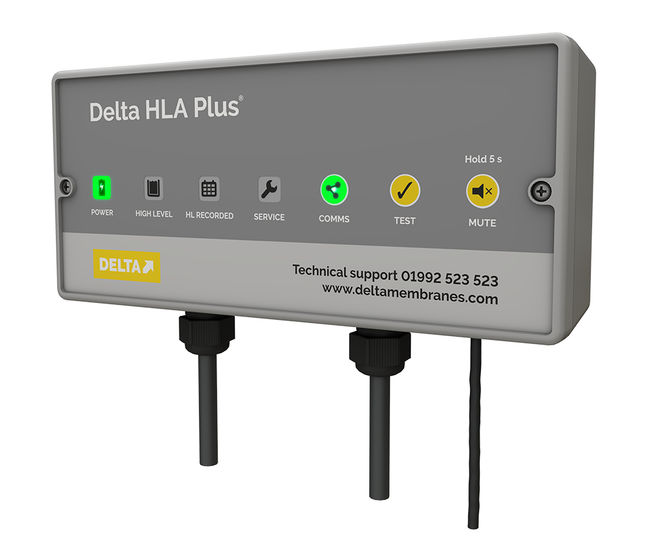

The Delta HLA Plus smart high water level alarm and monitoring system is capable of delivering real-time monitoring and notification services for Foul and Delta 800 Series packaged pumping stations. It can also be retrofitted to existing pumping stations.

For all important or time-sensitive notifications, the Delta HLA Plus allows homeowners, property owners, facilities managers or keyholders to engage in real-time with pump stations via the Delta Pumps App, which offers an uncomplicated way to register HLA Plus devices. After registration of the Delta HLA Plus all monitoring and notification services are sent directly to the listed keyholders via email and push notification.

For any important or time-sensitive notifications, the Delta HLA Plus allows property owners to engage in real-time with their basement drainage system, using the Delta Pumps
App.

The Delta HLA Plus can be retrofitted in any existing sump pump chamber / sump pump system that manages foul or larger packaged pumping station, such as the Delta 800 Series.

Features

  • Provides smart alarm function for single or dual pump system with or without control panel

  • Suitable for foul or Delta V3, V4, V6 800 Series sump pumps

  • Colour coded LED Facia and audible displays

  • Modern, lightweight, and compact design

  • Instant real-time monitoring to spot service failures before they make any impact

  • Sends notification messages to users in real time – if there is mains power outage,
    – when a high water situation has been recorded
    – when a high water level situation occurs
    – when a service or routine maintenance is due
    – when changes in pump activity occur (frequency and duration)

  • Pendant float switch and 10m cable

  • Real-time streamline log analysis of basement drainage system and pumping stations

  • Instant communication during emergencies and other critical events

  • Enhanced customer care

  • A fully downloadable CSV history

  • Delta Pumps App identifies multiple pump stations on one site

  • Reduces risk of critical events

  • Allows for service intervals to be set at 3, 6 or 12 months

  • No subscription fees for monitoring and enhanced services

  • Data stored on SD integrated card

Specifications

  • Product code: DMS 532

  • Colour: grey

  • Included:
    - Delta HLA Plus control unit
    - Sump float switch with 10m cable
    - Counterweight
    - Cable tie
    - 16mm IP68 cable gland x3
    - 20mm IP68 cable gland

  • Power supply: 230 V 50 Hz

  • Rated power: < 10 mA

  • Internal battery: 3.6 V, 7 Ah

  • Sound alarm level: 80 dB

  • Power cable length: 1m

  • Weight: 640g

  • Enclosure material: ABS

  • Protection rating: IP54

Accreditation

  • NBS Specification R18 (Clause 310) Pumping Stations and Pressure Pipelines

  • BS 8102:2022 Type C Drained Protection

  • The Low Voltage Directive, EN61010:2010

  • The EMC Directive EN55014:2006, A1 and EN55014-2:2015
