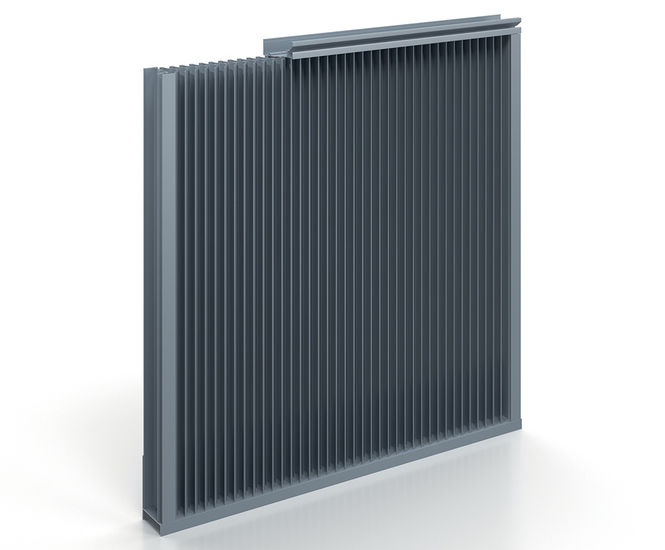

82mm-deep high-performance louvre offering protection against wind-driven rain penetration and high airflow.

Features

  • Complex extruded blade design in vertical arrangement for maximum rain defence performance

  • Channels in blades, jambs and mullions to collect and drain water from the louvred area

  • Visible interlocking mullions to line up with other façade elements

  • Compact and lightweight design, ideal for curtain wall or glazing applications

  • Sightproof design

  • Delivered to site as prefabricated modules for efficient installation

  • Tested in accordance with EN 13030 for Rain Defence and Airflow Performance

Applications

  •  Where reliable resistance to wind-driven rain is a priority

  • Where using a large plenum behind louvres is impractical due to cost or space considerations

  • Where sensitive equipment will be housed close to the louvre system

  • Where louvres are to be fitted into curtain walling or glazing system

Performance

  • Rain Penetration Class: A up to 3.5m/s

  • Airflow Class: 2 (entry and discharge)

  • Airflow Coefficient Ce (entry): 0.326

  • Airflow Coefficient Cd (discharge): 0.388

Materials

  • Aluminium alloy 6063-T6

  • Nominal minimum thickness: 1.27mm for blades; 1.52mm for head frames; 2.03mm for cill and jamb frames, and for mullions

  • Aluminium components manufactured using minimum 55% recycled content (mix of pre- and post-consumer scrap)

  • Louvre weight 21kg/m2 , based on a 2 x 2m module size

Finishes

  • Mill

  • Polyester powder coated: matt (standard); gloss

  • Anodised: clear; colour

Warranty

  • 2-year product warranty

  • Up to 30-year finish warranty (powder coated or anodised)

Optional extras

  • Bird / vermin guards - galvanised weld mesh (standard) or expanded aluminium

  • Insect mesh

  • Blanking - single skin plates or insulated panels

  • Louvred doors and gates

  • Dampers
