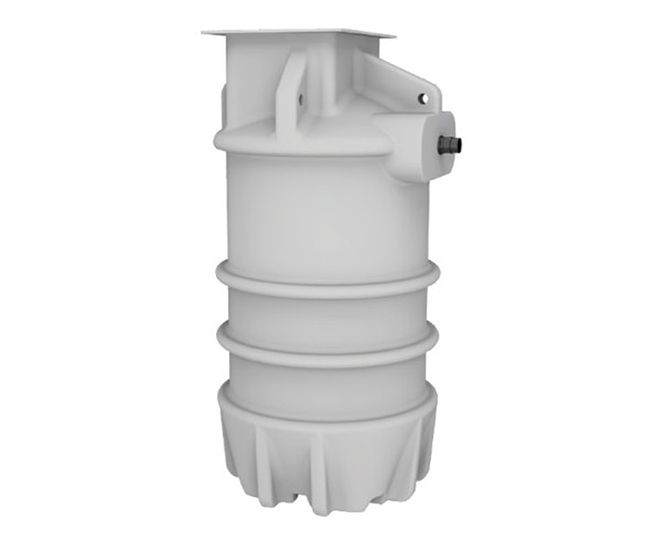

Delta Bespoke 800 Series Dual V6 (800.1750) pumping station

Product name

Delta Bespoke 800 Series Dual V6 (800.1750)

Product code

DMS-E011

The heavy-duty Delta Bespoke 800 Series – Dual V6 (800.1750) packaged pumping station is specifically designed to collect ground and surface water from basements, below-ground structures. Typical applications include Type C cavity-drained waterproofing solutions and / or surface water from roofs, buried roofs, terraces and patios (subject to selection criteria).

System includes: a polyethylene chamber, 1¼” PVC internal pipework, two Delta V6 sump pumps, 110mm inlet, 50mm cable duct, 110mm vent and 2” discharge.

This product is specifically designed for below-ground applications where hydrostatic water pressure may be present.

Not suitable for collecting foul water.

Key features

Suitable for ground, surface, storm, and grey water applications
Large chamber, manufactured from superior polyethylene enabling it to withstand hydrostatic forces encountered in applications with high water tables
Flow rate up to 3.9 l/s
Quick and simple installation
Supplied with two powerful Delta Dual V6 Pumps
Suitable for residential, commercial, health care / learning institution and heritage projects

Delta recommends surrounding the product with concrete to prevent movement. An access cover is not supplied as these are generally site-specific and installed in the final finish.

If required, the chamber will accept a standard 450 x 600mm cover and frame. Inlets can easily be drilled and sealed on site, making this product straightforward to install.
