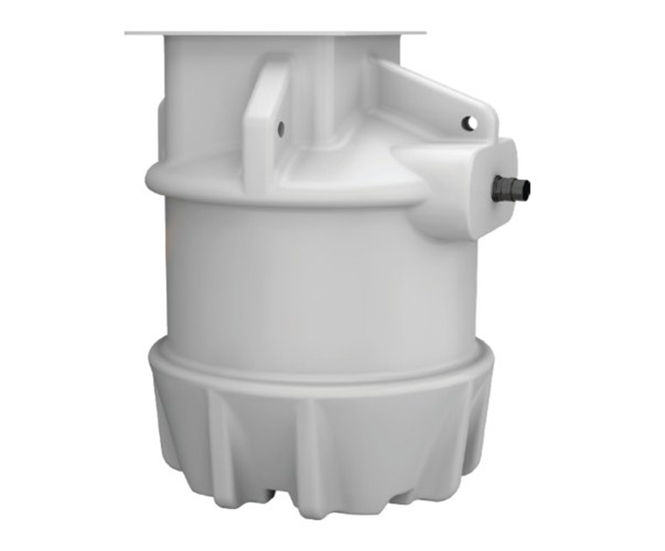

The robust and reliable Delta Bespoke 800 Series – Dual V6 (800.1250) Packaged Pumping Station has been specifically designed to collect ground and surface water from basements, below ground structures.

Delta Bespoke 800 Series – Dual V6 (800.1250) offers a higher discharge head to the Delta Dual V3 and V4 range.  Typical applications include (but are not limited to) Type C, Cavity Drained Waterproofing solutions and/or surface water from roofs, buried roofs, terraces and patios (subject to selection criteria).

Delta Bespoke 800 Series – Dual V6 (800.1250) system includes: a polyethylene chamber, 1¼” PVC internal pipework, two Delta V4 sump pumps, 110mm inlet, 50mm cable duct, 110mm vent and 2” discharge.

This product is specifically designed for below ground applications where hydrostatic water pressure may be present.

Key features

The Delta Bespoke 800 Series – Dual V6 (800.1250) is not suitable for collecting foul water.

  • Suitable for ground, surface, storm, and grey water applications

  • Large chamber, manufactured from superior polyethylene enabling the – Delta Dual V6 (800.1250) to withstand hydrostatic forces
    encountered in applications with high water tables

  • Flow rate up to 3.9 l/s

  • Quick and simple installation

  • Supplied with two powerful Delta Dual V6 Pumps

  • Suitable for residential, commercial, health care/learning institution and heritage projects

Technical specification

  • Product Code: DMS-E009

  • Chamber Material: Tank Grade Polyethylene

  • Chamber Dimension: 900 mmØ x 1250 mmH

  • Clear Opening: 600 mm x 450 mm

  • Inlets: 110mm

  • Internal Pipework: 1¼” PVC Class E

  • Discharge: 2” PVC Class E

  • Cable duct: 50mm

  • Vent duct: 110mm

  • Pumps Supplied: Delta Dual V6

  • Pump Type: Vortex

  • Control: Automatic

  • Discharge Size: 1¼”

  • Max flow rate: 3.9 l/s

  • Cable Length: 5 m
