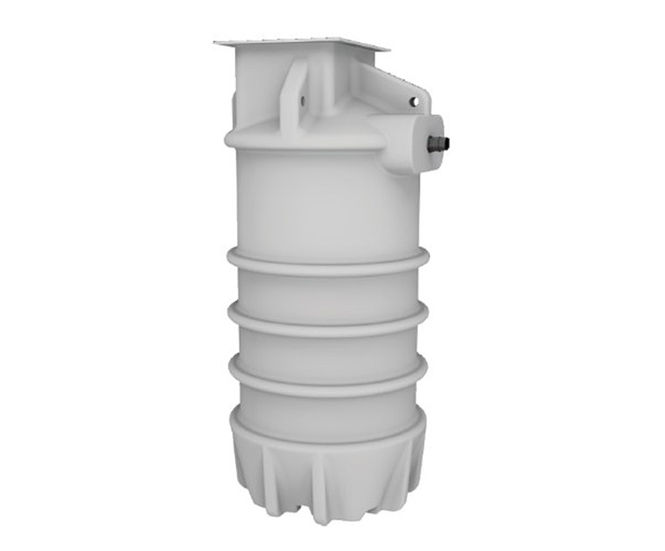

Delta Bespoke 800 Series Dual V3 (800.2000) pumping station

Product name

Delta Bespoke 800 Series Dual V3 (800.2000)

Product code

(800.2000)

The heavy-duty Delta Bespoke 800 Series – Dual V3 (800.2000) Packaged Pumping Station has been specifically designed to collect ground and surface water from basements, below ground structures. Typical applications include Type C, Cavity Drained Waterproofing solutions and/or surface water from roofs, buried roofs, terraces
and patios (subject to selection criteria).

Delta Bespoke 800 Series – Dual V3 (800.2000) system includes: a polyethylene chamber, 1¼” PVC internal pipework, two Delta V3 sump pumps, 110mm inlet, 50mm cable duct, 110mm vent and 2” discharge.

This product is specifically designed for below ground applications where hydrostatic water pressure may be present.

The Delta Bespoke 800 Series – Dual V3 (800.2000) is not suitable for collecting foul water.

Key features

Suitable for ground, surface, storm, and grey water applications
Large chamber, manufactured from superior polyethylene enabling the – Delta Dual V3 (800.1500) to withstand hydrostatic
forces encountered in applications with high water tables
Flow rate up to 2.9 l/s
Quick and simple installation
Supplied with two powerful Delta Dual V3 Pumps
Suitable for residential, commercial, health care/learning institution and heritage projects

We recommend surrounding the Delta Bespoke 800 Series – Dual V3 with concrete to prevent movement. An access cover is
not supplied, as these are generally site specific and installed in the final finish.

If required, the chamber will accept a standard 450mm x 600mm cover and frame. Inlets can easily be drilled and sealed on site,
making this product straightforward to install.
