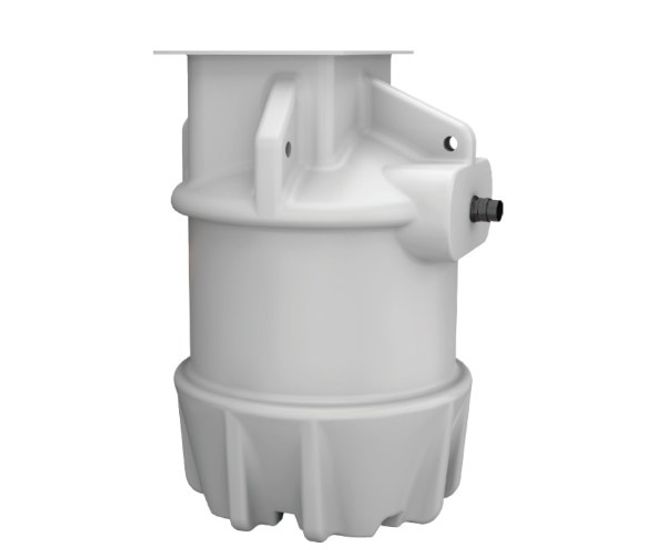

The robust and reliable Delta Bespoke 800 Series – Dual V3 Packaged Pumping Station has been specifically designed to collect ground and surface water from basements, below ground structures.

The Delta Bespoke 800 Series of Package Pumping Station are available in depths from 1250mm to 2000mm and with varying pumping capabilities from the Delta Single V3 Foul to powerful Delta Dual V6 pump.

Typical applications include (but are not limited to) Type C, Cavity Drained Waterproofing solutions and/or surface water from roofs, buried roofs, terraces and patios (subject to selection criteria).

System includes

  • Polyethylene chamber

  • 1¼” PVC internal pipework

  • 2 Delta V3 sump pumps

  • 110mm inlet

  • 50mm cable duct

  • 110mm vent

  • 2” discharge

Key features

The Delta Bespoke 800 Series – Dual V4 (800.1250) is not suitable for collecting foul water.

  • Suitable for ground, surface, storm, and grey water applications

  • Large chamber, manufactured from superior polyethylene enabling the – Delta Dual V4 (800.1250) to withstand hydrostatic forces
    encountered in applications with high water tables

  • Flow rate up to 3.3 l/s

  • Quick and simple installation

  • Supplied with two powerful Delta Dual V4 Pumps

  • Suitable for residential, commercial, health care/learning institution and heritage projects

Technical specifications

  • Product Code: DMS-E005

  • Chamber Material: Tank Grade Polyethylene

  • Chamber Dimension: 900 mmØ x 1250 mmH

  • Clear Opening: 600 mm x 450 mm

  • Inlets: 110mm

  • Internal Pipework: 1¼” PVC Class E

  • Discharge: 2” PVC Class E

  • Cable duct: 50mm

  • Vent duct: 110mm

  • Pumps Supplied: Delta Dual V4

  • Pump Type: Vortex

  • Control: Automatic

  • Discharge Size: 1¼”

  • Max flow rate: 3.3 l/s

  • Cable Length: 5 m

  • NBS Specification R18 (Clause 310) Pumping Stations and Pressure Pipelines

  • BS 8102:2022 Type C Drained Protection
