Delta Bespoke 800 Series - Dual V3 packaged pumping station

Product name

Delta Bespoke 800 Series

Product code

DMS-E001

Suitability

Dirty water

The robust and reliable Delta Bespoke 800 Series – Dual V3 (800.1250) packaged pumping station has been specifically designed to collect ground and surface water from basements and below-ground structures.

Available in 1250–2000mm depths and with varying pumping capabilities from the Delta Single V3 Foul to powerful Delta Dual V6 pump.

Typical applications include (but are not limited to) Type C, cavity drained waterproofing solutions and / or surface water from roofs, buried roofs, terraces and patios (subject to selection criteria).

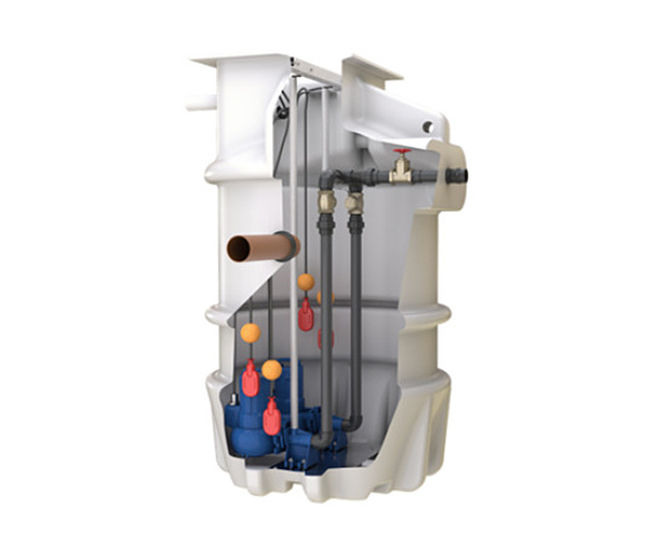

System includes: a polyethylene chamber, 1¼” PVC internal pipework, two Delta V3 sump pumps, 110mm inlet, 50mm cable duct, 110mm vent and 2” discharge.

The Delta Bespoke 800 Series – Dual V3 (800.1250) is not suitable for collecting foul water.

Features

Suitable for ground, surface, storm and grey water applications
Large chamber, manufactured from superior polyethylene enabling it to withstand hydrostatic forces encountered in applications with high water tables
Flow rate up to 2.9 l/s
Quick and simple installation
Supplied with two powerful Delta Dual V3 Pumps
Suitable for residential, commercial, healthcare / learning institution and heritage projects

This product is specifically designed for below-ground applications where hydrostatic water pressure may be present. Delta recommends surrounding the Delta Bespoke 800 Series – Dual V3 with concrete to prevent movement. An access cover is not supplied, as these are generally site-specific and installed in the final finish. If required, the chamber will accept a standard 450 x 600mm cover and frame.

Inlets can easily be drilled and sealed on site, making this product straightforward to install.
