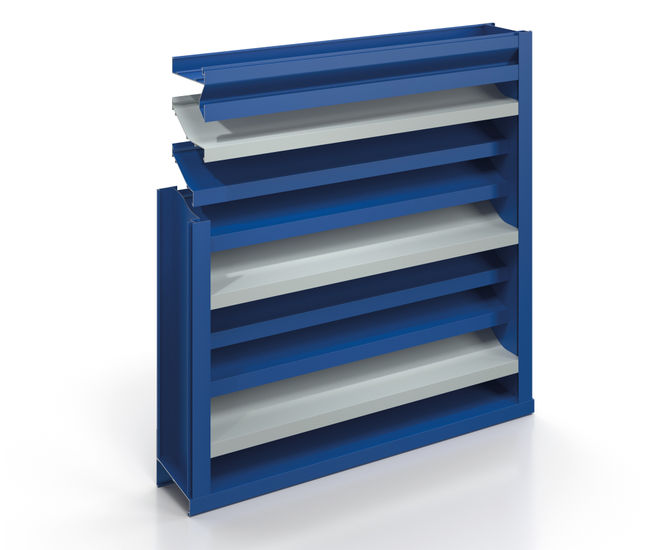

Bold Line ventilation louvres utilise two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.

  • Widely spaced extruded blades for maximum airflow performance

  • Choice of mullion styles, accent blade arrangements and colours for a truly bespoke façade:
    - Visible butt joint
    - Hidden mullion

  • Delivered to site as pre-fabricated modules for efficient installation

Features

  • Blade orientation: horizontal

  • Mullion type: visible or hidden

  • Louvre depth: 159 / 207mm

  • Blade pitch: 100mm

  • Weight: 15kg/m2 based on a 2 x 2m module size

Performance

  • Rain penetration class: C up to 1.5m/s

  • Airflow class: 2 (entry and discharge)

  • Airflow coefficient Ce (entry): 0.370

  • Airflow coefficient Cd (discharge): 0.331

Materials and finishes

  • Aluminium alloy 6063-T6

  • Mill finish

  • Clear or colour anodised

  • Polyester powder-coated matt (standard) or gloss

Optional extras

  • Blanking panels (single skin or insulated)

  • Bird / vermin guards, insect mesh

  • Louvred doors

  • Dampers
