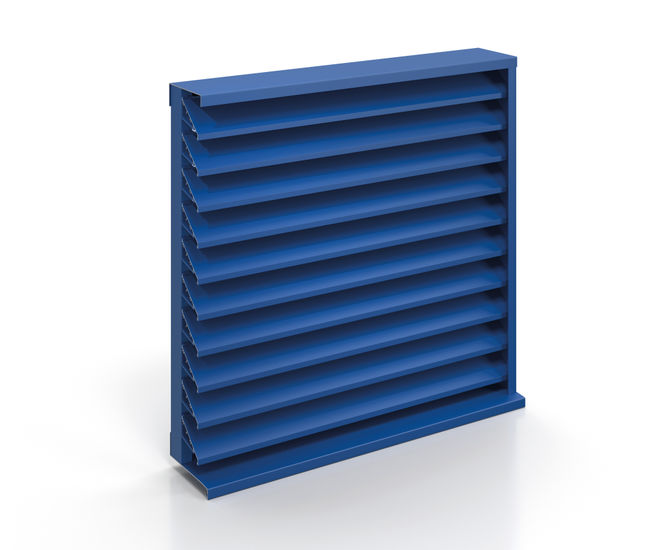

Provide excellent airflow and a degree of rain defence.

  • Simple blade design affords excellent airflow and low pressure drop

  • Hidden mullions for continuous blade appearance on the façade

  • Easy to install solution, delivered to site in component form

  • Optional perimeter flashings and cill pan can be supplied

Features

  • Blade orientation: horizontal

  • Mullion type: hidden

  • Louvre depth: 128mm

  • Blade pitch: 75mm

  • Weight: 11kg/m2 based on a 2 x 2m module size

Performance

  • Rain penetration class: D up to 3.5m/s

  • Airflow class: 1 (entry and discharge)

  • Airflow coefficient Ce (entry): 0.440

  • Airflow coefficient Cd (discharge): 0.434

Materials and finishes

  • Aluminium alloy 6063-T6

  • Mill finish

  • Clear or colour anodised

  • Polyester powder-coated matt (standard) or gloss

Optional extras

  • Perimeter flashings and cill pan

  • Blanking panels (single skin or insulated)

  • Bird / vermin guards, insect mesh

  • Louvred doors

  • Dampers
