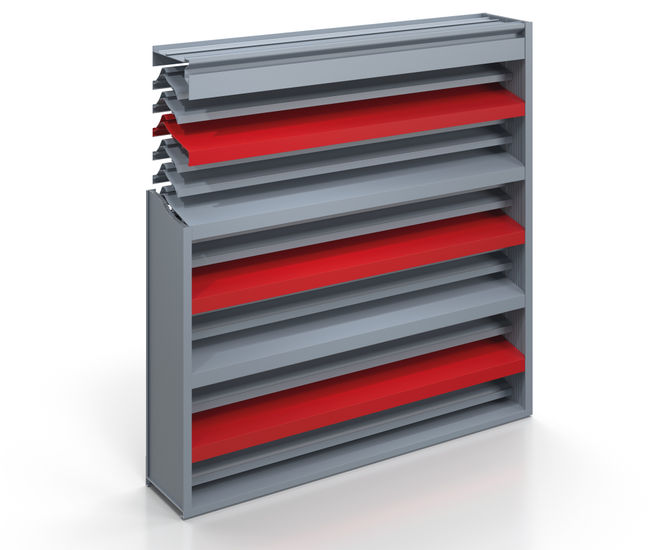

Bold Line rain defence louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.

  • Complex extruded blade design featuring multiple channels for effective rain defence performance (Class A up to 2.5 m/s)

  • Choice of mullion styles, accent blade arrangements and colours for a truly bespoke façade look
    - Visible butt joint
    - Recessed mullion
    - Hidden mullion

  • Delivered to site as pre-fabricated modules for efficient installation

  • Sightproof design

Features

  • Blade orientation: horizontal

  • Mullion type: visible, recessed or hidden

  • Louvre depth: 183mm

  • Blade pitch: 51mm

  • Weight: 27kg/m2 based on a 2 x 2m module size

Performance

  • Rain penetration class: A up to 2.5m/s

  • Airflow class: 2 (entry), 3 (discharge)

  • Airflow coefficient Ce (entry): 0.324

  • Airflow coefficient Cd (discharge): 0.273

Materials and finishes

  • Aluminium alloy 6063-T6

  • Mill finish

  • Clear or colour anodised

  • Polyester powder-coated matt (standard) or gloss

Optional extras

  • Head / cill / jamb cover plates

  • Blanking panels (single skin or insulated)

  • Bird / vermin guards, insect mesh

  • Louvred doors

  • Dampers
