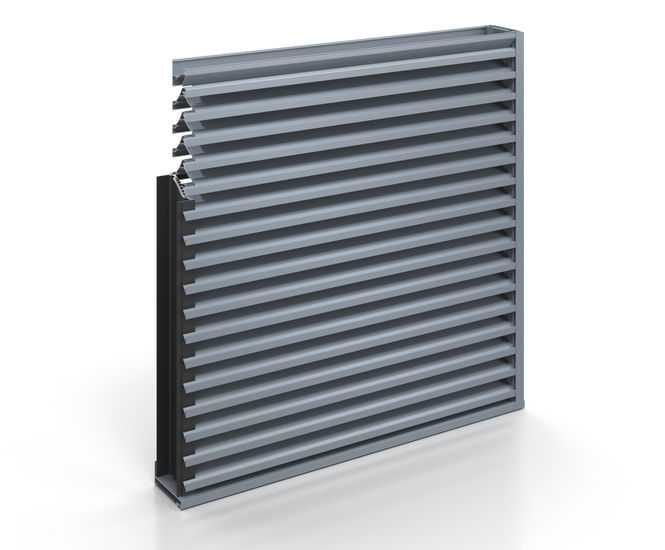

High-performing louvres offering protection against wind-driven rain penetration, good airflow and a continuous line appearance on a façade.

  • Complex extruded blade design for maximum rain defence performance (A up to 3.5 m/s)

  • Multiple channels in blades and vertical components to collect and drain water from the louvred area

  • Louvre blades are cut out around recessed black mullions for a continuous line appearance

  • Sightproof design

  • Delivered to site as pre-fabricated modules for efficient installation

Features

  • Blade orientation: horizontal

  • Mullion type: recessed

  • Louvre depth: 129mm

  • Blade pitch: 51mm

  • Weight: 27kg/m2 based on a 2 x 2m module size

Performance

  • Rain penetration class: A up to 3.0m/s

  • Airflow class: 2 (entry), 3 (discharge)

  • Airflow coefficient Ce (entry): 0.309

  • Airflow coefficient Cd (discharge): 0.274

Materials and finishes

  • Aluminium alloy 6063-T6

  • Mullions powder-coated black as standard

  • Louvre blades and perimeter frames
    - Mill finish
    - Clear or colour anodised
    - Polyester powder coated matt (standard) or gloss

Optional extras

  • Head / cill / jamb cover plates

  • Blanking panels (single skin or insulated)

  • Bird / vermin guards, insect mesh

  • Louvred doors

  • Dampers
